Hot Rolled H Section Steel for Offshore Oil Drilling Platform

Hot Rolled H Section Steel for Offshore Oil Drilling Platform

Hot rolled H section steel for offshore oil drilling platform is a kind of hot rolled section steel which is used for offshore oil drilling platform. Due to its section shape, it is also called ¡°I-sections¡±, ¡°wide flange beam¡±, and ¡°W-beams¡±. The rolled H section steel are the most often used section for structural purposes. It features equal thick and wide flanges, high bending strength, light weight and cost saving. The hot rolled H section steel for offshore oil drilling platform is manufactured according to Chinese Standard GB/T11263-2010, YB/T 4274-2012 and Japanese Standard JIS G3192. The mainly dimension range is as following: height in the range of 100~900mm, width in the range of 100~300mm and the flange thickness in the range of 8~50mm. If you have any special requirements, please contact us. We will try our best to fulfill you. If you want to know more details, welcome to contact us!

Features

• Efficient shape for carrying shear and bending force in the plane of the web

• High reliability

• To reduce the end-product¡¯s weight

• Standard sizes with a little tolerances

• Full selection of dimensions

Product Details

Project

Data

Steel Grade

SM490YB

Standards

GB/T11263-2010, YB/T 4274-2012, JIS G3192

Type

Hot Rolled

Height

HW100~400mm

HM150~600mm

HN150~900mm

Length

6~18m

Application

Offshore oil drilling platforms

Note

HW represents H section steel with wide flanges, HM represents H section steel with middle flanges, and HN represents H section steel with narrow flanges.

Hot Rolled H Section Steel for Offshore Oil Drilling Platform

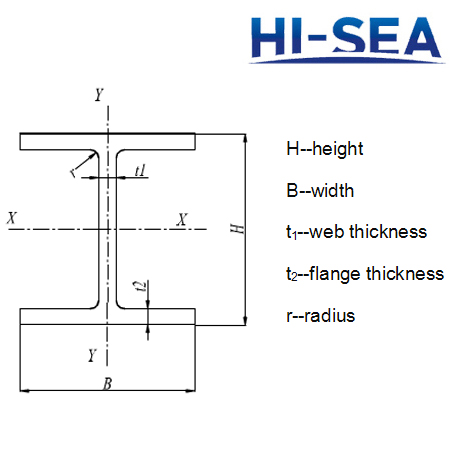

Profile of Hot Rolled H Section Steel for Offshore Oil Drilling Platform

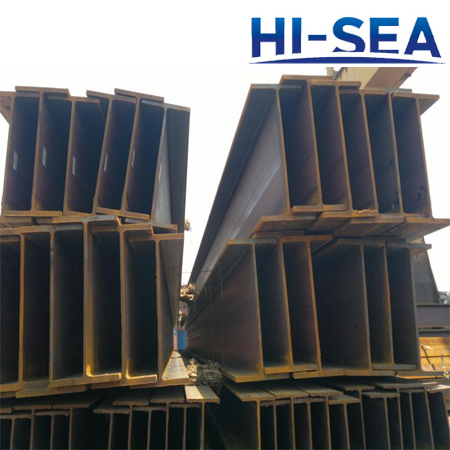

Hot Rolled H Section Steel for Offshore Oil Drilling Platform

Hot Rolled H Section Steel for Offshore Oil Drilling Platform

Hot Rolled H Section Steel for Offshore Oil Drilling Platform
