Hot Rolled Steel T-Sections for Shipbuilding

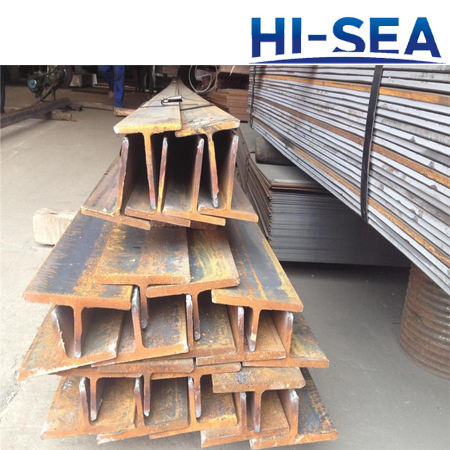

Hot Rolled Steel T-sections for Shipbuilding

The T-sections we provided are a kind of hot-rolled steel section which are applied to ships and marine structures. T-sections are also known as ˇ°T-beamsˇ±. The hot rolled steel T-sections for shipbuilding are manufactured under the standard GB/T 3433-2013. The T-section has advantages of high bending strength, light weight , cost and time savings. We are able to supply hot rolled steel T-sections for shipbuilding made of various materials, such as Q235, Q345, CCSA... The mainly dimensional range is as following: height 100~600mm, width 50~200mm, web thickness 4~15mm, flange thickness 7~28mm. If you have any specific requirements, please contact us. We will try our best to fulfill your requirements.

Features

• In line with GB/T 3433-2013

• Used for shipbuilding and marine structures

• Full selection of materials and dimensions

• High quality

• Standard-sized, well-shaped and reliable

Hot Rolled Steel T-Sections for Shipbuilding

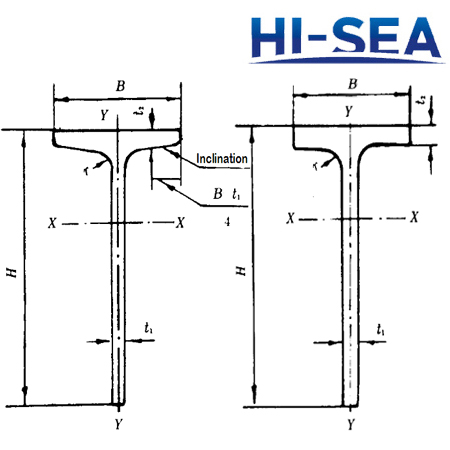

Profile of Hot Rolled Steel T-sections for Shipbuilding

Dimensions

Model

Sectional Dimension

H

B

t1

t2

Inclination

r

10

b

100

54

4

7

1:10

2.5

a

100

55

5

12

c

120

60

4

5

--

b

120

65

5

9

1:10

a

120

66

6

15

c

150

75

4

6

--

b

150

65

5

9

1:10

a

150

67

7

18

c

180

90

5

7

--

3

b

180

89

6

11

1:10

a

180

90

7

21

c

210

100

6

8

--

b

210

90

7

11

1:10

a

210

91

8

24

c

240

120

7

9

--

3.5

b

240

119

8

13

1:10

a

270

120

9

27

c

270

130

7

10

--

b

270

119

8

13

1:10

a

300

121

10

30

c

300

150

8

12

--

4

b

300

138

9

16

1:10

a

350

140

11

35

b

350

139

10

(a)

350

141

12

40

c

400

180

8

12

--

5

b

400

158

10

20

1:10

a

400

160

12

45(a)

450

161

13

50a

500

180

14

24

6

55(a)

550

181

15

60a

600

200

15

28

6
