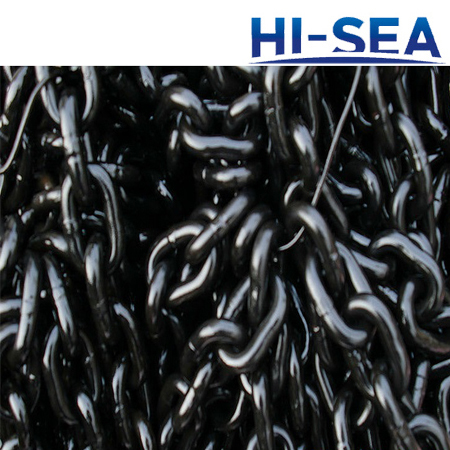

Round Link Mining Chain

Round Link Mining Chain

Our round link mining chain is a kind of high-tensile steel chains for chain conveyors and coal ploughs. The chains are not suitable for lifting chains and suspended chains. It meets the requirements of GB/T 12718. The round link mining chain features high tensile strength, high safety coefficient, excellent abrasion resistance. The material diameter range of the chain is from 10 mm ~ 42 mm. If you require any specific specifications, please contact us.

Besides the round link mining chain, we also provide lashing chains, lifting chains, etc. Other standard chains, such as American standard chains, European Standard chains, German standard chains are all available.

Features of Round Link Mining Chain

• Type: welded round link chain

• Standard: GB/T 12718

• Application: for chain conveyors and coal ploughs

• Package: drums, reels,hanks... Or as your request

Specifications of Round Link Mining Chain

Nominal Size of Chain mm	Pitch mm	Width mm		Radius mm	Size on Weld mm		Weight kg/m
Nominal Size of Chain mm	Pitch mm	Internal Width	Outside Width	Radius mm	Diameter	Length	Weight kg/m
10	40	12	34	15	10.8	7.1	1.9
14	50	17	48	22	15	10	4.0
18	64	31	60	28	19.5	13	6.6
22	86	26	74	34	23.5	15.5	9.5
24	86	28	79	37	26	17	11.6
26	92	30	86	40	28	18	13.7
30	108	34	98	46	32.5	21	18.0
34	126	38	109	52	36.5	23.8	22.7
38	137	42	121	58	41	27	29
42	152	46	133	64	45	30	35.3
