Chain DIN 5684

Chain DIN 5684

Our chain DIN 5684 is a kind of welded fine tolerance hoist chain meeting the requirements of DIN 5684. The chain is grade T (types T, DAT, DT), which comply with the requirements of DIN EN 818-7. Excepting type DAT and type DT chains, other grade T chains are not only suitable for chain hoists, but also other lifting equipment.

We are able to supply DIN 5684 chain with diameter range from 4 mm to 22 mm. Available packages are in hanks, reels, drums, bags or as your request.

Usage of different types of Chain DIN 5684

• T type -- suitable for hand chain hoist or low-speed power-driven link chain hoist without consideration of wear

• DAT type -- suitable for heavy-duty high-speed power-driven link chain hoist

• DT type -- suitable for power-driven link chain hoist under wear condition

We are also able to supply fine tolerance hoist chains in accordance with Chinese Standard GB/T 20947. Please contact us for more information.

Features of Chain DIN 5684

• Specification: DIN 5684

• Fine tolerance

• Types: grade T (types T, DAT, DT)

• Finishes: natural color, electrogalvanized, hot dip galvanized

• Applications: lifting purposes

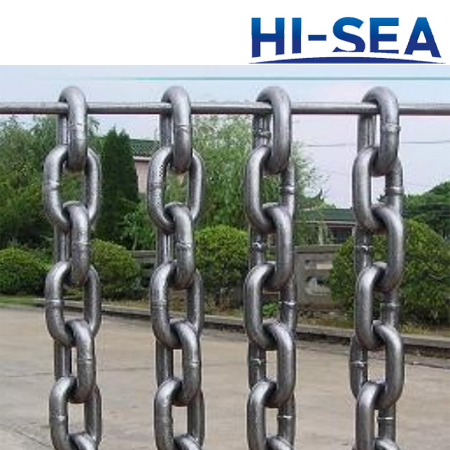

Chain DIN 5684

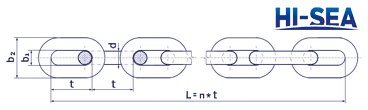

Drawing of Chain DIN 5684

Specifications of Chain DIN 5684

Nominal Diameter d mm	Pitch t mm	Inside Width b₁ min mm	Outside Width b₂ max mm	Length L = 11 * t mm	Weight kg/m
4	12	5	13.7	132	0.35
5	15	6	16.9	165	0.54
(5)	18.5	6	16.9	203.5	0.5
6	18	7.2	20.2	198	0.8
(6)	18.5	7.2	20.2	203.5	0.8
7	21	8.4	23.6	231	1.1
(7)	22	8.4	23.6	242	1.1
8	24	9.6	27	264	1.4
9	27	10.8	30.4	297	1.8
10	28	12	34	308	2.2
11	31	13.2	37.4	341	2.7
13	36	15.6	44.2	396	3.8
14	41	16.8	47.6	451	4.4
16	45	19.2	54.4	495	5.7
18	50	21.6	61.2	550	7.3
20	60	24	68	660	8.8
22	66	26.4	75	726	10.7
