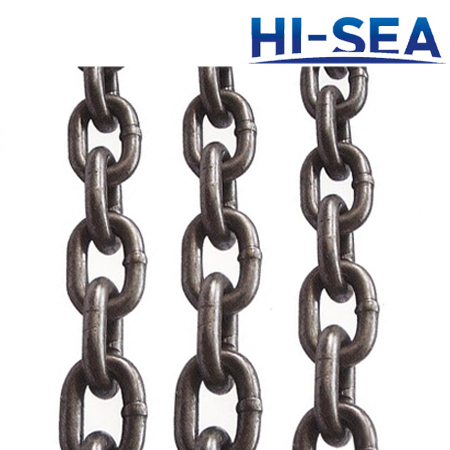

Chain DIN 764 is a sort of round steel link chain for conveyors. The available steel grades are grade 2, grade 3, and grade 5. The chain is calibrated and tested. There are two types of tolerance: A tolerance class A, for use with chain wheels; B tolerance class B, for use with rollers. It should be noted that the din 764 chain should not intended for use as lifting chains or chain slings.

The chain finises are black painted, galvanized or as your request. We are able to customize the length of chain. The package, such as drums, reels, is possible.

Other available chains complying with German specifications:

• Chain DIN 5687

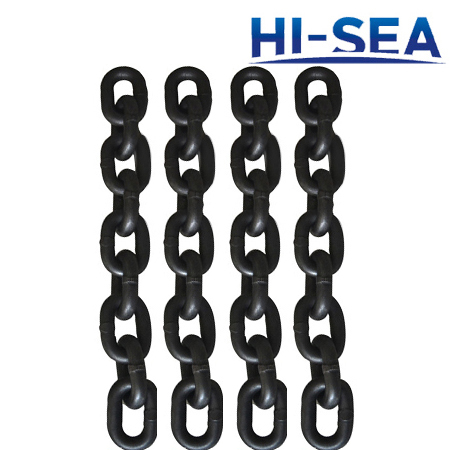

• Chain DIN 5684

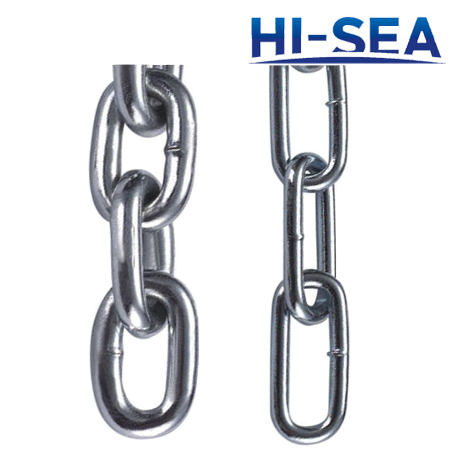

• Chain DIN 5685

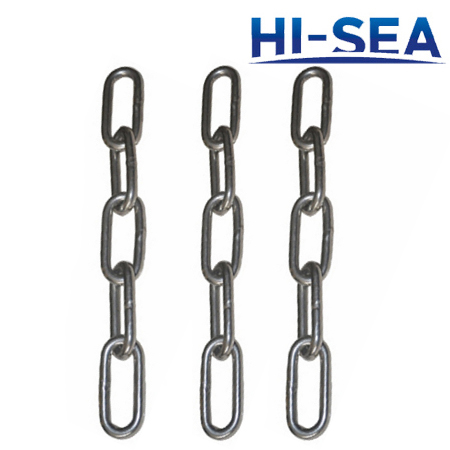

• Chain DIN 763

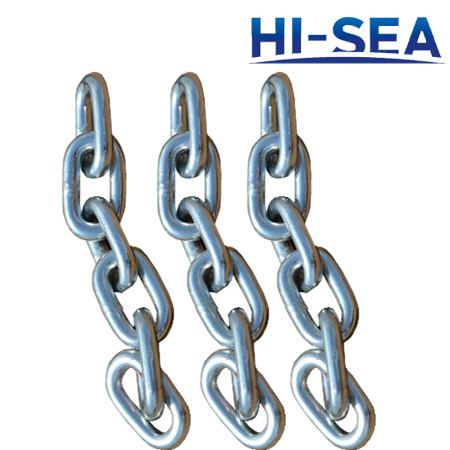

• Chain DIN 766

Please let us know what are you looking for, we’ll glad to help.

Chain DIN 764

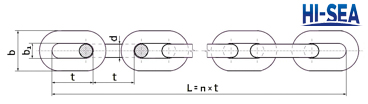

Drawing of Chain DIN 764

Specifications of Chain DIN 764

Size d mm	Inside Length t mm	Inside Width b₁ mm	Outside Width b mm	Length L L=11 * t mm	Weight per 100m kg	Breaking Load kn	Test Load kg
4	16	5	14	176	31.3	7	400
5	18	7	18.2	198	51.4	11.8	680
6	21	8	21.5	231	74	16.5	850
8	28	11	29	308	131.5	32	1680
10	35	14	36	385	200	50	2630
12	42	16	41	462	298	70	3680
13	45	18	47	495	350	80	4200
14	49	20	48	539	406	92	4830
16	56	22	58	616	520	125	6700
18	63	24	65	693	650	160	8400
20	70	27	72	770	820	200	10000
23	80	31	83	880	1100	250	13000
26	91	35	94	1001	1400	320	16000
