Chain DIN 766

Chain DIN 766

Our chain din 766 is a kind of short link chain made of high quality steel. The chain specifications comply with the requirements of DIN 766, the material is in line with DIN 17151. The chain din 766 is suitable for all general purposes, engineering, industrial and marine applications in conjunction with our range of mild steel accessories. We are able to customize chains and accessories according to your requirements.

All products are available with various protective finishes, such as zinc painted, self color, hot dip galvanized.

Please tell us your specific requirements, and we’ll give a satisfactory reply.

Features of Chain DIN 766

• General: not suitable for lifting purposes

• Material: steel DIN 17151

• Specification: DIN 766

• Finishes: self color, bright zinc painted, hot galvanized... Or as per customer’s request

• Packages: in bulk hanks, reels, bags...

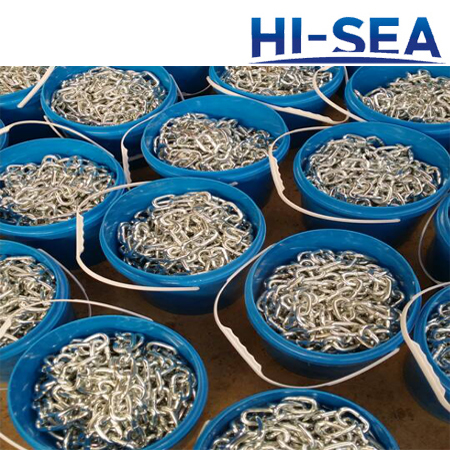

Chain DIN 766

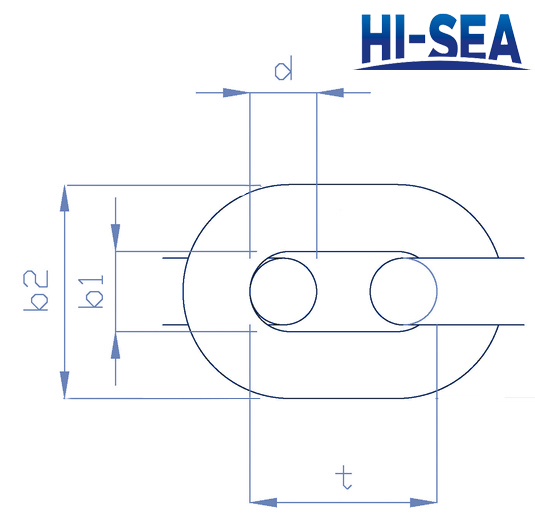

Drawing of Chain DIN 766

Specifications of Chain DIN 766

Size d mm	Inside Length t mm	Inside Width b₁ mm	Outside Width b₂ mm	Length L L=11 * t mm	Weight per 100m kg	Breaking Load kn
2	12	3.5	7.5	132	0.07	1.25
3	16	4.2	11	176	0.16	4.00
4	16	5	13.7	176	0.32	8.00
5	18.5	6	17	203.5	0.5	12.50
6	18.5	7.2	20.2	203.5	0.8	16.00
7	22	8.4	23.8	242	1.1	25.00
8	24	9.6	27.2	264	1.4	32.00
9	27	10.8	30.6	297	1.8	40.00
10	28	12	34	308	2.2	50.00
11	31	13.2	37.4	341	2.7	63.00
12	36	14.4	40.8	396	3.1	72.40
13	36	15.6	44.2	396	3.8	80.00
14	41	16.8	47.6	451	4.4	100.00
16	45	19.2	54.4	495	5.7	125.00
18	50	21.6	61.2	550	7.3	160.00
19	53	22.8	64.6	583	7.97	180.00
20	56	24.0	68.0	616	9	200.00
22	62	26.4	75.0	682	11	243.00
23	64	27.6	78.2	704	12	250.00
26	73	31.2	88.4	803	15	320.00
28	78	33.8	95.2	858	18	400.00
30	84	41.0	102	924	19.5	450.00
32	90	43.0	108.8	990	23	500.00

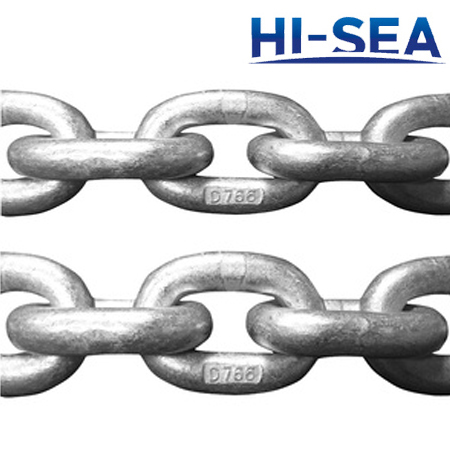

Chain DIN 766
