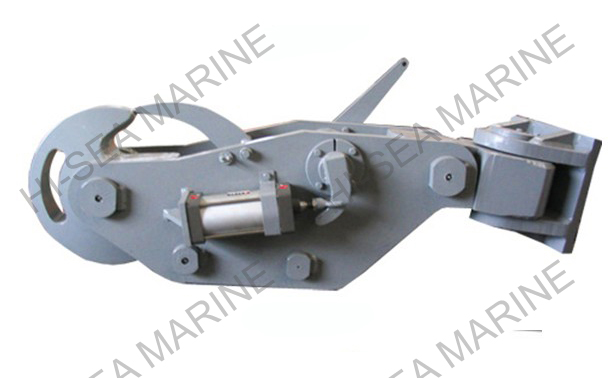

Pneumatic Quick Release Disc Towing Hook

Pneumatic Quick Release Disc Towing Hook

Disc towing hook is one common type of marine towing hooks. It is widely applicable to emergency towing and port towing. With the towing hook, the mooring ropes can be release in a short time when ships need leaving the port. Disc towing hook can be controlled through manual release or pneumatic release. Pneumatic release disc towing hook realizes the remote control of the hook through the pneumatic air cylinder. It reduces much of the releasing time and labor intensity.

Specification:

1. Type: Disc Type

2. Control System: Pneumatic Release

3. Usage: For Emergency Towing and Port Towing

4. Safe Working Load: 30t,50t,60t,80t,90t,100t

5. Material: Steel

6. Movement: Side Movement

7. Color: Yellow, Black, Red or as Required

8. High Quality with Competitive Price

9. Certificate: CCS, ABS, NV, DNV,GL, LR etc.

10. Can be Customized according to Special Requirements

We supply various types of marine towing hooks. For more information, please do not hesitate to contact us.

Pneumatic Quick Release Disc Towing Hook

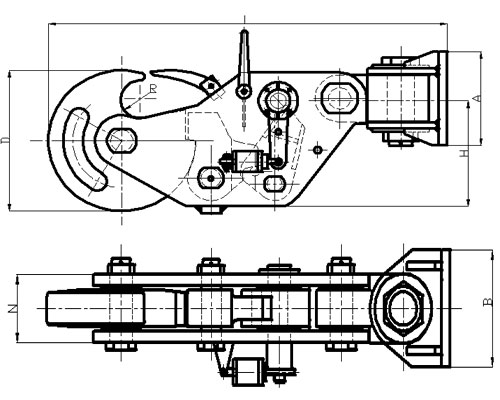

Drawing of Pneumatic Quick Release Disk Towing Hook

S.W.L. (ton)	A	B	D	H	L	N	R
30	300	285	470	355	1278	180	60
50	395	360	470	405	1395	214	60
60	400	380	600	450	1628	220	80
80	410	400	600	466	1703	260	80
90,100	450	430	650	502.5	1915	328	88

Note: the technical parameters is only for reference.
