Hydraulic Release Harbour Towing Hook



Hydraulic Release Harbour Towing Hook

Harbour towing hook is used to enable the ships to be towed safely though ships work under severe working conditions. It can release the towing line whether it is under slack or full safe working load. Harbor towing hook can be released manually or through remote control from the wheelhouse by pulling the release wire or by pushing a button. The remote control systems can be supplied with either a hydraulic or pneumatic release mechanism.

Hydraulic release harbour towing hook is released by the hydraulic release mechanism. Comparing to the traditional bollard, it greatly reduces the labor intensity and improve the labor efficiency, safety and reliability. This release hook can help the mooring ropes released from the its hook once the vessel has to leave the dock for emergency. It ensures both the dock and vesselí»s safety and avoids large losses.

Specification:

1. Type: Harbour Type

2. Control System: Hydraulic Release Operation

3. Usage: Ship Mooring and Towing

4. Applications: Container Berth, General Cargo Berth, Offshore Dock,Ferry Dock etc.

5. Work Principle: Leverage

6. Material: Steel

7. Safe Working Load: 150kN to 1000kN

8. Test Load: 300kN to 1500kN

9. Release Load: 150kN to 1000kN

10. Weight: 52kg to 526kg

11. Movement: Side Movement

12. High Quality with Competitive Price

13. Certificate: CCS,ABS, BV, DNV, LR, NK etc.

14. Custom Service for Special Requirement

We supply all types of Marine Towing Hooks. For more detail information about our products and company, please feel free to contact us. We'll reply you as soon as we could.

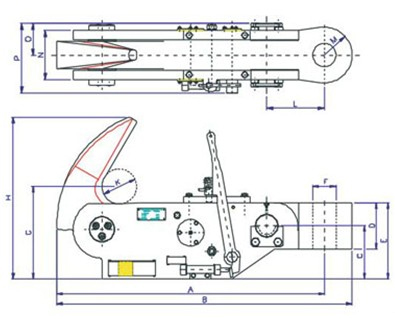

Drawing of Hydraulic Release Harbour Towing Hook

unit: mm

S.W.T

T.L

R.L

W.t

A

B

C

D

E

F

G

H

K

L

M

N

N

P

150

300

150

52

521

571

100

100

150

40

174

316

65

110

50

100

100

150

300

600

300

143

788

868

160

130

225

60

268

461

96

180

80

125

125

207

450

900

450

289

1023

1123

200

160

260

80

350

616

130

210

100

148

148

224

562

1125

562

352

1073

1183

200

290

290

90

350

616

130

250

110

170

170

245

1000

1500

1000

526

1159

1279

230

330

330

100

400

700

150

250

120

212

212

333

Remark:

S.W.L. = Safe Working Load in KN

T.L. =Test Load in KN

R.L. = Release Load in KN

Wt. = Weight in Kilograms
