JIS F2033 Roller Chain Stopper

JIS F2033 Roller Chain Stopper

JIS F2033-1980 rollered bar type anchor chain cable stopper is applicable to grade 3 anchor chain cable. It can withstand 80% of chain cable¡¯s breaking load and avoid being permanently deformed. When a ship is sailing or casting anchor, this chain cable stopper is an important device to clamp the anchor chain and help reduce the working load of windlass. Except roller bar type chain stopper, we also supply all other types of chain stoppers such as screw type chain stopper, cast lever chain stopper, pawl type chain stopper, OCIMF type chain stopper. For more information, please feel free to contact us.

Features of JIS F2033 Roller Chain Stopper

1. Model Type: Rollerd Bar Type Chain Stopper;

2. Standard: JIS F2033-1980;

3. Material: cast steel;

4. Applicable to grade 3 chain cable 70~132mm;

5. Weight: 1000~5080kg;

6. Color: red, black, grey or others as customer required;

7. Grey epoxy primer, polished,galvanized or bitumen painted;

8. Durable, long life time;

9. Competitive price, prompt delivery;

10. Certificate: ABS,CCS,LR,BV,NK etc.;

11. Can be customized according to customer¡¯s drawing.

JIS F2033 Roller Chain Stopper

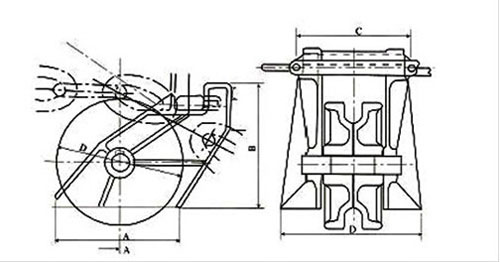

Drawnig of JIS F2033 Rollered Bar Type Chain Stopper for Grade 3 Chain Cable

Unit:mm

Nominal Number

73

78

84

90

95

102

107

114

122

132

Anchor Chain Diameter

70~73

76~78

81~84

87~90

92~95

97~102

105~107

111~114

117~122

127~132

A

730

780

840

900

950

1020

1070

1140

1220

1320

B

715

760

820

890

945

1005

1070

1140

1220

1315

C

700

730

780

840

880

940

990

1040

1100

1170

D

730

780

840

900

950

1020

1070

1140

1220

1320

Weight(kg)

1000

1180

1470

1780

2110

2380

2900

3440

4100

5080

Note:the gross wight doesn¡¯t include the weight of handle or counterweight.
