Jis F2033 Roller Bar Type Chain Stopper

Jis F2033 Roller Bar Type Chain Stopper

Chain stopper is positioned between the windlass and the hawse pipe deck, used for clamping the chain. Anchor-handling, anchor chains tension can be transferred to the ship, the anchoring machine is not in the state of stress. When sailing, chain stopper bearing anchor and anchor chain part of gravity, and will receive the hawse pipe within the anchor stick to hull, without collision.

Features of JIS F2033 Roller Bar Type Chain Stopper

1. Model Type: Roller Bar Type Chain Stopper;

2. Standard: JIS F2033-1980;

3. Material: cast steel;

4. Applicable to grade 3 chain cable 70~132mm;

5. Weight: 1000~5080kg;

6. Grey epoxy primer, polished,galvanized or bitumen painted;

7. Withstand 80% of chain cable¡¯s minimum breaking load;

8. Competitive price, short delivery, excellent service;

9. Certificate: ABS,CCS,LR,BV,NK etc.;

10. Customized service is available.


Jis F2033 Roller Bar Type Chain Stopper

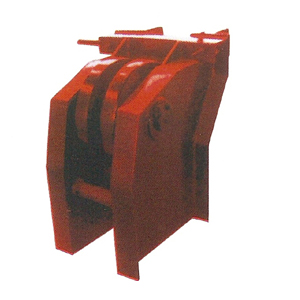

Rollered Type Chain Stopper

Rollered Bar Type Chain Stopper

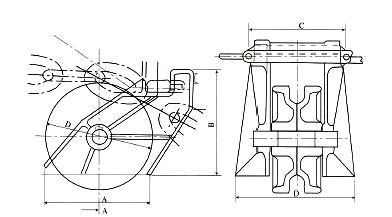

Drawing of Jis F2033 Roller Bar Type Chain Stopper

unit: mm

Number 73 78 84 90 95 102 107 114 122 132
Diameter of Apply Anchor Chain 70~73 76~78 81~84 87~90 92~95 97~102 105~107 111~114 117~122 127~132
A 730 780 840 900 950 1020 1070 1140 1220 1320
B 715 760 820 890 945 1005 1070 1140 1220 1315
C 700 730 780 840 880 940 990 1040 1140 1170
D 730 780 840 900 950 1020 1070 1140 1220 1320
Weight(kg) 1000 1180 1470 1780 2110 2380 2900 3440 4100 5080
