Jis F2032 Roller Pawl Type Chain Stopper

JIS F2032 Cast Steel Chain Stopper

JIS F2032 cast steel chain stopper is roller pawl type chain cable stopper. It is positioned on the deck between the anchor windlass and hawsepipe, used for clamping the chain. When the ship is mooring and at anchor, the chain stopper can help transfer the chain tension to the ship instead to the windlass. Thus the windlass can be not in the state of stress. Chain stopper is a necessary mooring equipment for vessels. For more information, please feel free to contact us.

Features of JIS F2032 Cast Steel Chain Stopper

1. Roller Pawl Type Chain Stopper;

2. Standard: JIS F2032;

3. Applicable to Grade 3 Anchor Chain;

4. Nominal Chain Diameter 70mm to 132mm;

5. Material: Cast Steel;

6. Durable, Long Life Time;

7. Competitive Price, Short Delivery, Excellent Service;

8. Certificate: CCS,ABS,BV,LR,NK etc.;

9. Can Be Customized

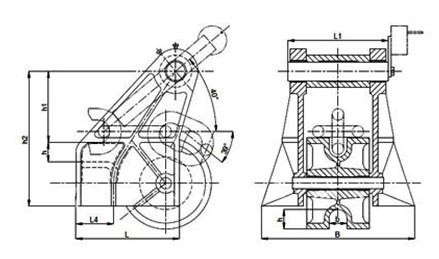

Drawing of Jis F2032 Roller Pawl Type Chain Stopper

Dimensions(mm)
Nominal Chian Dia.	h	h1	h2	L	L1	L4	B	b	D	Weight(kg)
70-73	125	422	860	660	640	241	980	115	584	1096
76-78	133	450	918	700	680	254	1046	123	624	1316
81-84	143	483	983	760	720	279	1110	134	672	1608
87-90	153	515	1055	810	770	295	1190	143	720	1938
92-95	162	545	1115	860	810	317	1250	151	760	2286
97-102	175	584	1195	920	860	337	1320	161	816	2787
105-107	185	617	1265	981	900	364	1390	170	864	3274
111-114	195	651	1335	1026	940	376	1460	180	912	3874
117-122	208	695	1427	1100	995	408	1550	191	976	4600
127-132	225	750	1542	1190	1060	441	1660	207	1056	5750

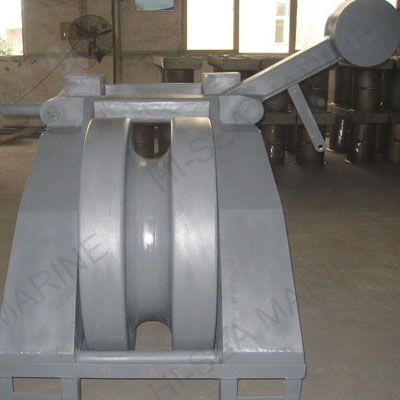

Photo of Roller Pawl Type Chain Stopper
