JIS F2016 Pawl Type Chain Stopper

JIS F2016 Pawl Type Chain Stopper is cast steel pawl type chain stopper applicable to grade 2 and grade 3 anchor chains. Pawl type chain stopper is installed between the windlass and hawsepipe in order to clamp the anchor chain when ship sails or drops anchor. It helps to reduce the working load of windlass, letting the windlass out of the pull from anchor. We supply all types of chain stoppers and can design new chain stoppers according to customer’s drawing. For more information, please feel free to contact us.

Features of JIS F2016 Pawl Type Chain Stopper Type A

1. Model Type: pawl type chain stopper type A;

2. Standard: JIS F2016-1987;

3. Material: cast steel;

4. Nominal Anchor Chain Diameter: 58~120mm;

5. Nominal Weight: 306 to 2239kg;

6. Applicable to grade 2 anchor chain cable;

7. Certificate: ABS,CCS,BV,LR,NK etc.

8. Can be customized.

JIS F2016 Pawl Type Chain Stopper

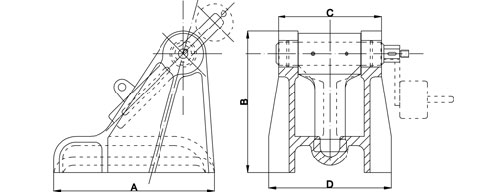

Drawing of JIS F2016-87 Cast Steel Pawl Type Chain Stopper for Grade 2 Anchor Chain

Nominal No.	Nominal Diameter of Anchor Chain	Size(mm)				Weight(kg)
Nominal No.	Nominal Diameter of Anchor Chain	A	B	C	D	Weight(kg)
60	58~60	780	670	506	600	306
64	62~64	835	710	538	630	385
68	66~68	885	750	568	660	464
73	70~73	900	801	604	700	549
48	76~78	1015	852	641	750	674
84	81~84	1095	911	686	800	806
90	87~90	1170	969	732	850	1002
95	92~95	1235	1021	768	900	1165
102	97~102	1350	1090	816	950	1443
107	105~107	1400	1148	857	1000	1636
114	111~114	1480	1207	902	1050	1933
120	117~120	1585	1280	956	1120	2239

Features of JIS F2016 Pawl Type Chain Stopper Type B

1. Model Type: pawl type chain stopper;

2. Standard: JIS F2016-1987;

3. Material: cast steel;

4. Nominal Anchor Chain Diameter: 36 to 122mm;

5. Nominal Weight: 210 to 2900kg;

6. Applicable to grade 3 anchor chains;

7. Certificate: ABS,CCS,BV,LR,NK etc.;

8. Can be customized

Drawing of JIS F2016-87 Cast Steel Pawl Type Chain Stopper for Grade 3 Anchor Chain

Nominal No.	Nominal Diameter of Anchor Chain	Size(mm)				Weight(kg)
Nominal No.	Nominal Diameter of Anchor Chain	A	B	C	D	Weight(kg)
42	36~42	530	494	357	422	210
46	42~46	620	538	404	480	396
51	48~51	680	599	438	520	429
56	52~56	730	638	472	560	465
60	58~60	780	670	506	600	480
64	62~64	835	710	538	630	500
68	66~68	885	750	568	660	567
73	70~73	950	801	604	700	682
78	76~78	1015	852	641	750	818
84	81~84	1095	911	686	800	1030
90	87~90	1170	969	732	850	1220
95	92~95	1235	1021	768	900	1420
102	97,100,102	1350	1090	816	950	1830
107	105~107	1400	1148	857	1000	2130
114	111~114	1480	1207	902	1050	2410
122	117~122	1585	1280	956	1120	2900
