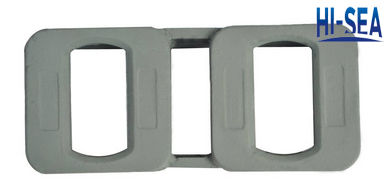

Double Raised ISO Foundation

Double Raised ISO Foundation

Double raised ISO foundation is a very important part to stack container on the dack. It is used to fix container through connecting twistlock and stacking cone, and is widely used in all kinds of shipping.

Product Details:

1. Material: High tensile steel

2. Type: Double type

3. Weight: 14.6KG, 14.7KG, 15.3KG

4. Finish: Shop primer

5. Application: Container, shipping

6. M.B.L tension: 500KN

7. M.B.L shear: 420KN

8. M.B.L compression: 2000KN

9. Customized design is available

10. All items are proves by major classification society

Our scope of container fittings are the follows:

D-ring, Lashing plate, Raised ISO foundations, Dovetail foundations, Flush sockets, Sliding foundations, Guide cone, Guide block, Turnbuckles, Lashing rods, Extension rods, Manual twistlocks, Semi-automatic twistlocks, Midlocks, Sliding twistlocks, Bridge fittings, Single stackers, Double stackers, Hanging stackers, , ETC.

Specification:

Model	HSDR6
Lc(mm)	L(mm)	Weight(kg)
203	363	14.6
216	376	14.7
258	418	15.3

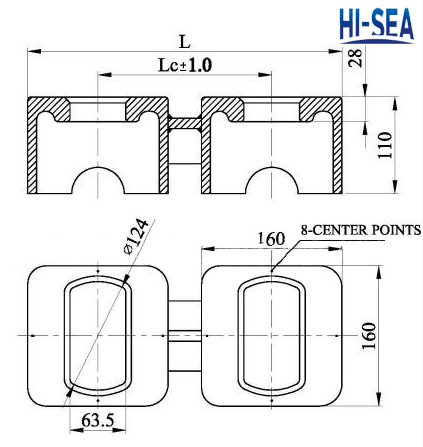

Sketch of the double raised ISO foundation

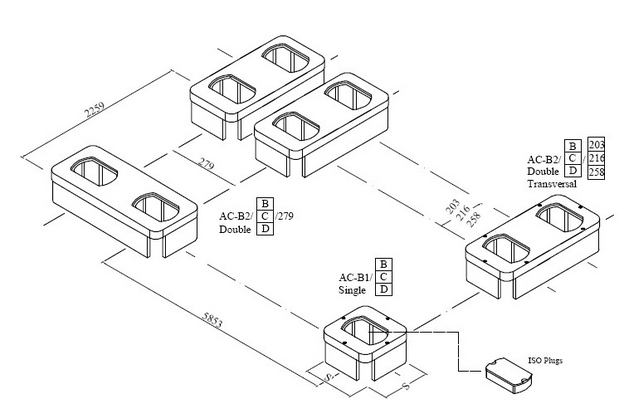

Usage of Double raised ISO foundation
