Container Dovetail Foundation

Container Dovetail Foundation

Container dovetail foundation, also called dovetail groove, is mainly used for the hatch cover and deck pillars, and is specially used for the fixed base twistlock. There are two kinds of it, the single type and the horizontal double type. Because of its solid structure, it could be used widely in container and shipping.

Product Details:

1. Material: Casting steel

2. Type: Single type

3. Surface treatment: Hot dip galvanized

4. Finish: Shop primer

5. Application: Container, shipping

6. Weight: 3.9kg

7. M.B.L tension: 500KN

8. M.B.L shear: 420KN

9. All items are proves by major classification society

Our scope of container fittings are the follows:

D-ring, Lashing plate, Raised ISO foundations, Dovetail foundations, Flush sockets, Sliding foundations, Guide cone, Guide block, Turnbuckles, Lashing rods, Extension rods, Manual twistlocks, Semi-automatic twistlocks, Midlocks, Sliding twistlocks, Bridge fittings, Single stackers, Double stackers, Hanging stackers, , ETC.

Container Dovetail Foundation

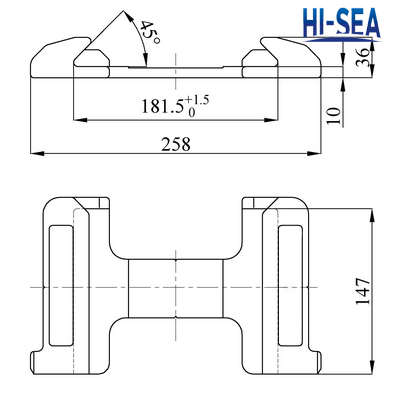

Sketch of the container dovetail foundation

Container Dovetail Foundation

Container Dovetail Foundation HSCD18
