Double Flush ISO Foundation

Double Flush ISO Foundation

Double flush ISO D-ring are usually welded on the bottom or cover of hatch, and used with single cone or twist lock to fix the bottom container. And all items are approves by major classification societies.

Product Details:

1. Material: Casting steel

2. Type: Double type

3. Weight: 19KG, 20KG, 22KG

4. Finish: Paint

5. Application: Container, shipping

6. M.B.L tension: 500KN

7. M.B.L shear: 420KN

8. M.B.L compression: 2000KN

9. Customized design is available

10. All items are proves by major classification society

Our scope of container fittings are the follows:

D-ring, Lashing plate, Raised ISO foundations, Dovetail foundations, Flush sockets, Sliding foundations, Guide cone, Guide block, Turnbuckles, Lashing rods, Extension rods, Manual twistlocks, Semi-automatic twistlocks, Midlocks, Sliding twistlocks, Bridge fittings, Single stackers, Double stackers, Hanging stackers, , ETC.


Model HSDF7
Lc(mm) L(mm) Weight(kg)
203 383 19
216 396 20
258 438 22

Double Flush ISO Foundation

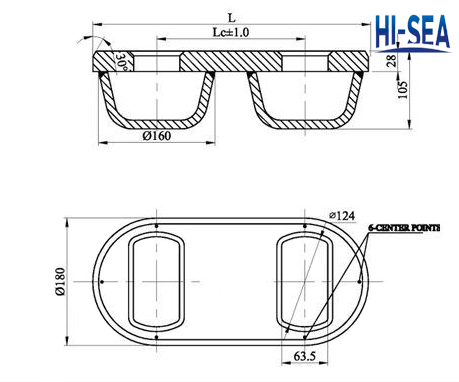

Sketch of double flush ISO foundation

Double Flush ISO Foundation

Transversal Double Flush ISO Foundation
