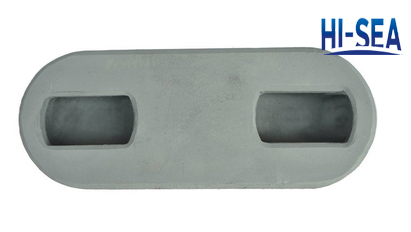

Container Longitudinal Double Flush ISO Foundation

Container Longitudinal Double Flush ISO Foundation

There are four types of flush ISO foundation: single type, transversal double type, longitudinal double type and quadruple type. It is mainly used for the bottom container, and can work with twistlock and semi-automatic twistlock.

Product Details:

1. Material:Ship building steel

2. Type: Double type

3. Finish: Paint

4. Application: Container, shipping

5. Weight: 19KG, 20KG, 22KG

6. M.B.L tension: 500KN

7. M.B.L shear: 420KN

8. M.B.L compression: 2000KN

9. All items are approved by major classification societies.

Our scope of container fittings are the follows:

D-ring, Lashing plate, Raised ISO foundations, Dovetail foundations, Flush sockets, Sliding foundations, Guide cone, Guide block, Turnbuckles, Lashing rods, Extension rods, Manual twistlocks, Semi-automatic twistlocks, Midlocks, Sliding twistlocks, Bridge fittings, Single stackers, Double stackers, Hanging stackers, , ETC.

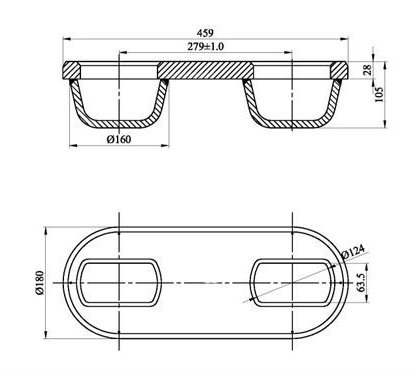

Sketch of the longitudinal double flush ISO foundation

Container Longitudinal Double Flush ISO Foundation HSCL2
