Container Flush D-ring

Container Flush D-ring

Container flush D-ring is widely used in container and shipping. It is fixed on the hatch cover and work with turnbuckles. And all the products are suitable for different needs.

Product Details:

1. Material: Forged steel

2. Type: Single type

3. Weight: 12KG

4. Surface treatment: Hot dip galvanized

5. Finish: Shop primer

6. Application: Container, shipping

7. M.B.L tension: 360KN

8. Customized design is available

9. All items are proves by major classification society

Our scope of container fittings are the follows:

D-ring, Lashing plate, Raised ISO foundations, Dovetail foundations, Flush sockets, Sliding foundations, Guide cone, Guide block, Turnbuckles, Lashing rods, Extension rods, Manual twistlocks, Semi-automatic twistlocks, Midlocks, Sliding twistlocks, Bridge fittings, Single stackers, Double stackers, Hanging stackers, , ETC.

Specification:

Type	B.L.	Weight
Normal D-ring 1	200KN	1.2KG
Normal D-ring 2	353KN	2.7KG
Normal D-ring 3	420KN	3.2KG
Flush D-ring	500Kn	4KG
Sliding D-ring	360Kn	12KG
Breech base D-ring	353KN	8KG
Turnfoot D-ring	353KN	8.5Kg

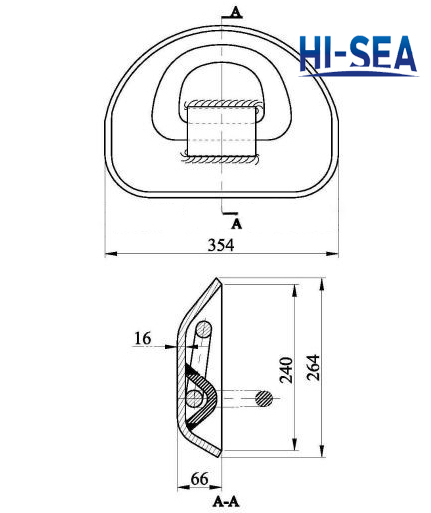

Sketch of the container flush D-ring
