CPL-190 Vertical Marine Magnetic Compass

CPL-190 Vertical Marine Magnetic Compass

CPL-190 Vertical Marine Magnetic Compass is a kind of liquid magnetic compass, suitable for large, medium-sized vessels acting as standard compass or steering compass. This compass has the characteristics of reasonable structure, simple operation, easy installation and high precision. It meets national standards GB/T14108-2011(General Technical Terms of Marine Magnetic Compass Class A).

Specifications

Project

Data

Dial Diameter

190mm

Dial Graduation

0~360 1 for each grid

Operation Temperature

-25C~+60C

Indicating Deviation(H=35µ T, T=203C)

<=0.5

Half Period (H=34µ T, T=203C)

>=8.62S

Friction Deviation (H=34µ T, T=203C)

<=0.09

Main Semicircle Self Heterodyne Correcting Energy

1~ 45

Secondary Semicircle Self Heterodyne Correcting Energy

1~ 6 (magnetic inclination Q=45)

Quadrant Self Heterodyne Correcting Energy

0.5~10

Inclining Heterodyne Correcting Energy

-75~ +75µT

Lighting Power

AC220V, DC24V

Outline Dimension

7204301300mm

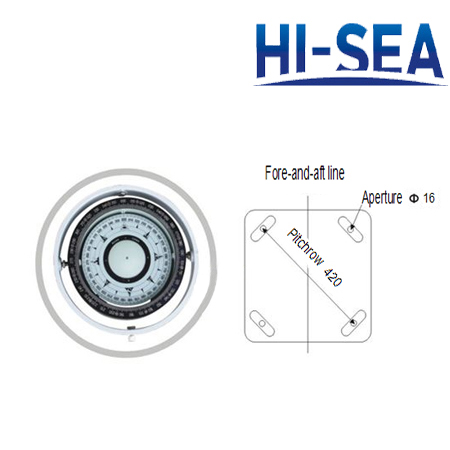

Diameter of Mounting Holes

pitchrow 420, aperture 16

Weight

40KG

Features

1. Easy to install

2. Simple to operate

3. To be space-efficient

4. High precision

5. Stable performance

CPL-190 Vertical Marine Magnetic CompassCPL-190 Vertical Marine Magnetic Compass

CPL-190 Vertical Marine Magnetic Compass

Model: CPL-190
