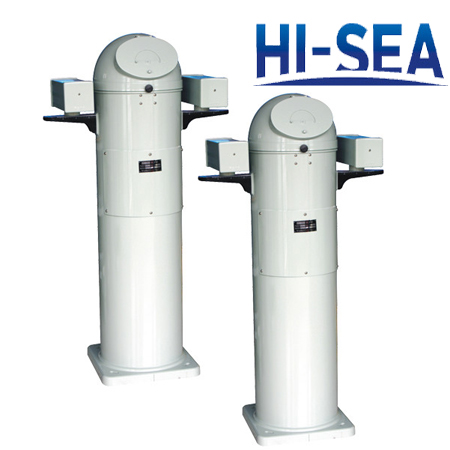

CPL-165 Vertical Marine Magnetic Compass

[Search Related Products]

CPL-165 Vertical Marine Magnetic Compass

CPL-165 Vertical Marine Magnetic Compass

CPL-165 Vertical Marine Magnetic Compass is designed and manufactured in accordance with the national standard GB/T 14108-93 (General Technical Terms of Marine Magnetic Compass Class A). This compass is suitable for the large and middle sized vessels acting as standard compass or steering compass. It is used for measuring azimuth and indicating course heading. This compass possesses the features of high precision, convenient correcting difference, steady performance and illumination.

Specification

Project

Data

Dial Diameter

165mm

Dial Graduation

0~360 1 for each grid

Operation Temperature

-25C~+60C

Indicating Deviation(H=35µ T, T=203C)

<=0.5

Half Period (H=34µ T, T=203C)

>=8.62S

Friction Deviation (H=34µ T, T=203C)

<=0.09

Main Semicircle Self Heterodyne Correcting Energy

1~ 45

Secondary Semicircle Self Heterodyne Correcting Energy

1~ 6 (magnetic inclination Q=45)

Quadrant Self Heterodyne Correcting Energy

0.5~10

Inclining Heterodyne Correcting Energy

-75~ +75µT

Lighting Power

AC220V, DC24V

Outline Dimension

7204301200mm

Diameter of Mounting Holes

pitchrow 420, aperture 16

Weight

33KG

Features

1. High precision

2. With illumination

3. Convenient correcting difference

4. Reliable performance

CPL-165 Vertical Marine Magnetic Compass

CPL-165 Vertical Marine Magnetic Compass

Model: CPL-165
