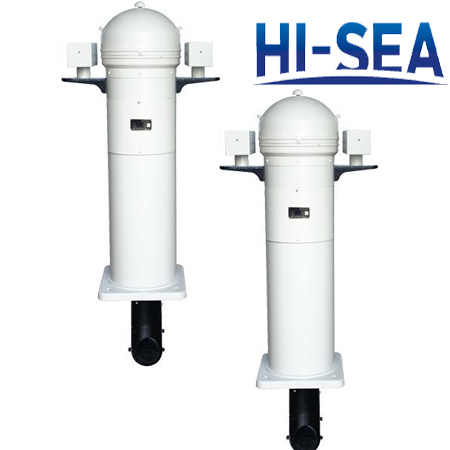

CGT-165 Vertical Marine Projection Magnetic Compass is a sort of vertical liquid compass. Compared with common magnetic compass, it can be standard magnetic compass as well as acting as steering compass. This compass is a space-saving option. Besides, it also has following advantages: good weathering resistance, reliable performance, simple installation, easy to clean, etc.

Specifications

Project	Data
Dial Diameter	Φ 165mm
Dial Graduation	0°~360° 1° for each grid
Operation Temperature	-25°C~+60°C
Indicating Deviation(H=35µ T, T=20±3°C)	<=0.5°
Half Period (H=34µ T, T=20±3°C)	>=8.62S
Friction Deviation (H=34µ T, T=20±3°C)	<=0.09°
Main Semicircle Self Heterodyne Correcting Energy	1°~ 45°
Secondary Semicircle Self Heterodyne Correcting Energy	1°~ 6° (magnetic inclination Q=45°)
Quadrant Self Heterodyne Correcting Energy	0.5°~10°
Inclining Heterodyne Correcting Energy	-75~ +75µT
Dial Image Expanding Rate	≈2 times (original dial graduation)
Lens Barrel Flexing Range	±10mm
Lighting Power	AC220V, DC24V
Outline Dimension	720×430×1300mm
Diameter of Mounting Holes	pitchrow 420, aperture Φ16
Weight	70KG

Features

1. Acting as standard compass and steering compass

2. To save space

3. High sensitivity

4. Easy to clean

5. Simple to install

CGT-165 Vertical Marine Projection Magnetic Compass

Model: CGT-165
