CB*789-87 Roller Upper Rudder Carrier

CB*789-87 Roller Upper Rudder Carrier

This product is marine roller upper rudder carrier. We can supply three types of this rudder carrier: type-A, type-B and type-C. Type A and B are suitable for small and medium vessels. Type C is suitable for small and medium vessels whose rudder stock has a larger diameter. This marine roller upper rudder carrier is approved by CB*789-87 standard. If you have interest in our product, please feel free to contact us. We will give you a satisfied reply.

Type

Name

Diameter of applicable tiller

Applicable scope

A

Light roller upper rudder bearing

ø40-ø150

Apply to the rudder whose load isní»t heavy and the revolving degree isní»t large

B

Heavy roller upper rudder bearing

ø120-ø340

Apply to the hanging rudder whose load is heavy and the revolving degree is large

C

Watertight roller upper rudder bearing

ø120-ø400

With seal function, apply to the hanging rudder whose load is heavy and the revolving degree is large

Product drawings:

CB*789-87 Roller Upper Rudder Carrier

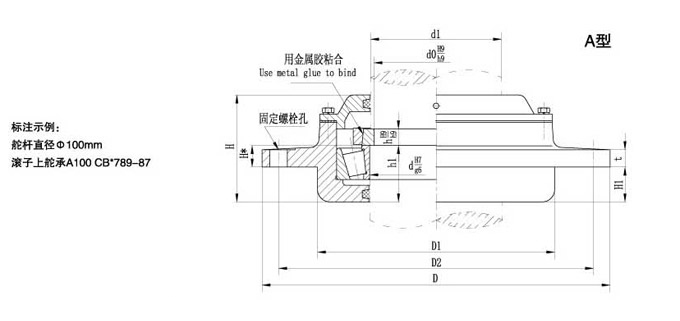

Drawing of Type A Roller Upper Carrier

CB*789-87 Roller Upper Rudder Carrier

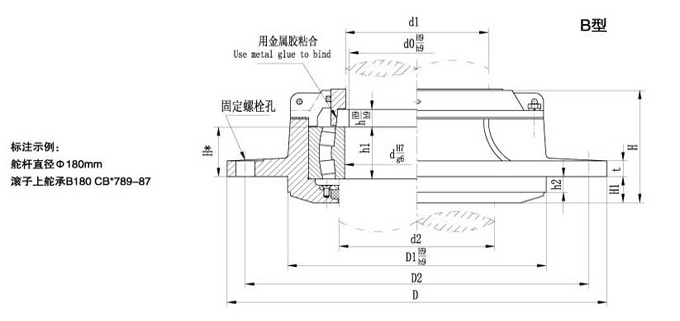

Drawing of Type B Roller Upper Carrier

CB*789-87 Roller Upper Rudder Carrier

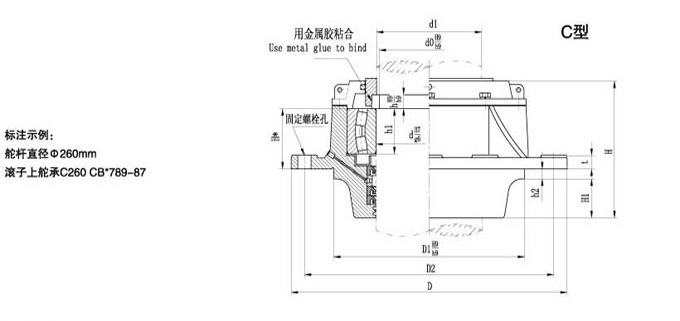

Drawing of Type C Roller Upper Carrier

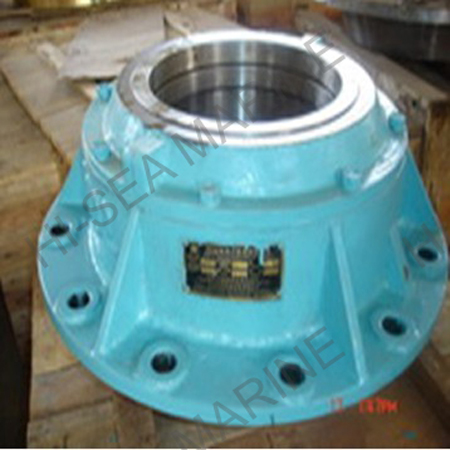

Product picture:

CB*789-87 Roller Upper Rudder Carrier

CB-789-87 Roller Upper Rudder Bearing
