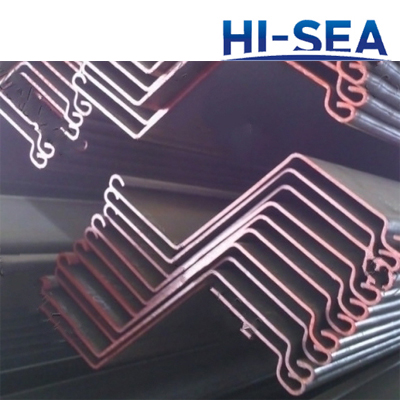

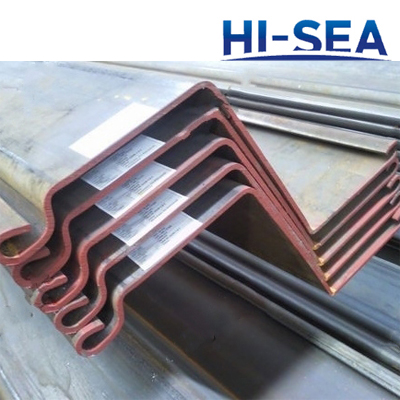

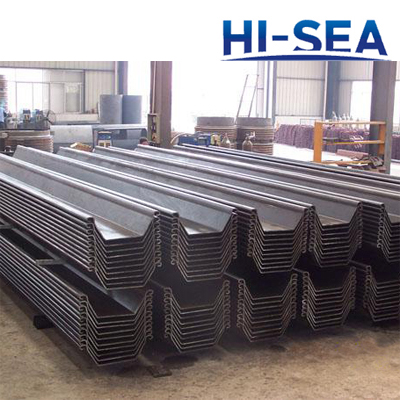

Z Shape Steel Sheet Pile

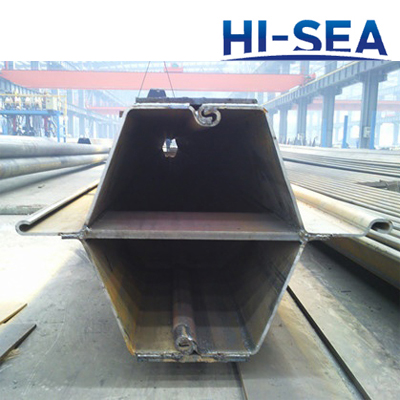

Hi-Sea Group could design and manufacture kinds of steel sheetpiles,including u type series,z type series,L/S type series,corner piles,box pile,and any other combined sheet piles.any requirement pls kindly contact with us.we are Hi-Sea group.

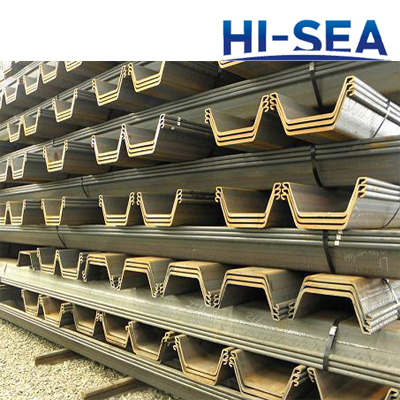

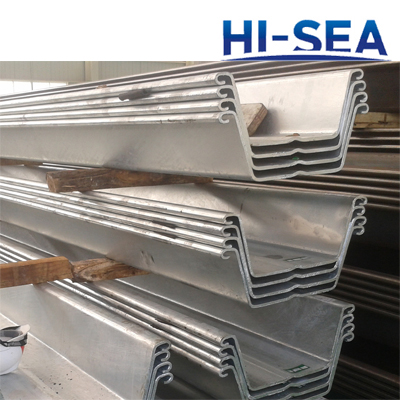

Largest China Cold formed Steel Sheet Pile supplier-HI-Sea sheet pile is a service-proven type familiar to both designers and constructors, which is extensively used for permanent structures, temporary earth-retaining works and temporary cofferdams, etc. Steel Sheet Pile is popular applied in projects of offshore building, riverside building and some other projects need to prevent the sands, water, and mud.

Material:SS490, MDB350, S430GP, S270GP, S355GP
Standard: EN10249

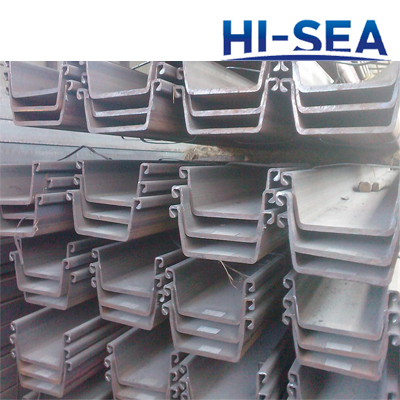

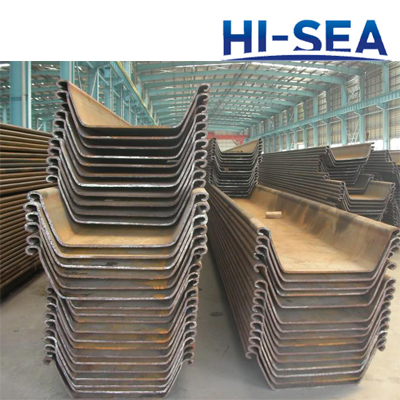

U profile steel sheet piles - BMU SERIES
Type	Width	Height	Thickness	Weight Per pile	Weight Per wall	Moment of inertia	Section modulus
mm	mm	mm	Kg/m	Kg/ m2	Cm4/m	Cm3/m
HSU7	750	320	5	42	56	10725	670
HSU8	750	320	6	51	68.1	13169	823
HSU9	750	320	7	59.7	79.6	15251	953
HSU10-450	450	360	8	52.5	116.7	18268	1015
HSU11-450	450	360	9	58.6	130.2	20375	1132
HSU12-450	450	360	10	64.7	143.8	22444	1247
HSU11-575	575	360	8	60.4	105.1	19685	1094
HSU12-575	575	360	9	67.5	117.4	21973	1221
HSU13-575	575	360	10	74.5	129.5	24224	1346
HSU11-600	600	360	8	61.9	103.2	19897	1105
HSU12-600	600	360	9	69.5	115.8	22213	1234
HSU13-600	600	360	10	76.5	127.5	24491	1361
HSU16	650	480	8	71.3	109.6	39864	1661
HSU 18	650	480	9	79.5	122.3	44521	1855
HSU20	650	540	8	78.1	120.2	56002	2074
HSU23	650	540	9	87.3	133	61084	2318
HSU26	650	540	10	96.2	146.9	69093	2559
HSU30-700	700	558	11	119.3	170.5	83139	2980
HSU32-700	700	560	12	129.8	185.4	90880	3246
HSU35-700	700	562	13	140.2	200.3	98652	3511
HSU36-700	700	558	14	156.2	223.2	102145	3661
HSU39-700	700	560	15	166.9	238.5	109655	3916
HSU41-700	700	562	16	177.6	253.7	117194	4170
HSU 32	750	598	11	127.1	169.5	97362	3265
HSU 35	750	600	12	138.3	184.4	106416	3547
HSU 38	750	602	13	149.4	199.2	115505	3837
HSU 40	750	598	14	166.1	221.5	119918	4011
HSU 43	750	600	15	177.5	236.7	128724	4291
HSU 45	750	602	16	188.9	251.8	137561	4570

In addition to its rigid structure, Hi-Sea steel sheet piles' moment of inertia per pile is relatively large, thus allowing repetitive use.Hi-Sea type steel sheet pile is available in a range of sections, with section modulus values ranging from 456 to 4042 cm3/m.

U profile steel sheet piles - BMU SERIES

Type

Width

Height

Thickness

Weight

Per pile

Weight

Per wall

Moment

of inertia

Section

modulus

mm

mm

mm

Kg/m

Kg/ m2

Cm4/m

Cm3/m

HSU7

750

320

5

42

56

10725

670

HSU8

750

320

6

51

68.1

13169

823

HSU9

750

320

7

59.7

79.6

15251

953

HSU10-450

450

360

8

52.5

116.7

18268

1015

HSU11-450

450

360

9

58.6

130.2

20375

1132

HSU12-450

450

360

10

64.7

143.8

22444

1247

HSU11-575

575

360

8

60.4

105.1

19685

1094

HSU12-575

575

360

9

67.5

117.4

21973

1221

HSU13-575

575

360

10

74.5

129.5

24224

1346

HSU11-600

600

360

8

61.9

103.2

19897

1105

HSU12-600

600

360

9

69.5

115.8

22213

1234

HSU13-600

600

360

10

76.5

127.5

24491

1361

HSU16

650

480

8

71.3

109.6

39864

1661

HSU 18

650

480

9

79.5

122.3

44521

1855

HSU20

650

540

8

78.1

120.2

56002

2074

HSU23

650

540

9

87.3

133

61084

2318

HSU26

650

540

10

96.2

146.9

69093

2559

HSU30-700

700

558

11

119.3

170.5

83139

2980

HSU32-700

700

560

12

129.8

185.4

90880

3246

HSU35-700

700

562

13

140.2

200.3

98652

3511

HSU36-700

700

558

14

156.2

223.2

102145

3661

HSU39-700

700

560

15

166.9

238.5

109655

3916

HSU41-700

700

562

16

177.6

253.7

117194

4170

HSU 32

750

598

11

127.1

169.5

97362

3265

HSU 35

750

600

12

138.3

184.4

106416

3547

HSU 38

750

602

13

149.4

199.2

115505

3837

HSU 40

750

598

14

166.1

221.5

119918

4011

HSU 43

750

600

15

177.5

236.7

128724

4291

HSU 45

750

602

16

188.9

251.8

137561

4570
