Larssen Steel Sheet Pile

Larssen Steel Sheet Pile

As a kind of new building material, larssen steel sheet pile plays an important role in the bridge cofferdam, large pipe laying, temporary ditch excavation to retaining soil, water and sand. Using larssen steel sheet pile to cofferdam is environmental protection, and the construction speed is quick. Beside that, it has a very good waterproof function.

Product Details:

1. High strength, light weight, good waterproof function.

2. Shortening the construction period and has good durability

3. Greatly reduce the usage amount of soil and concrete

4. The use of it will not be limited by weather condition.

5. For construction task, it can reduce the space requirement.

Application:

Cofferdam(land); Cofferdam(Water); Low embankment; Deep foundation pit; Shallow underground excavation; Light-duty Sea Use; Heavy-duty Sea Use; Underground water quality control. etc.

Attention:

1. Encountering unknown obstacles in the processing of pile driving, acr bypass should be adopted.

2. In the soft foundation, the adjacent pile may be influenced, then the adjacent pile head can be welding together to solve it.

Specification:

Model	Width	Height	Thickness	Sectional Area	Weight
	W(mm)	H(mm)	T(mm)	cm²/m	kg/m
SP-Ⅱ	400	100	10.5	61.2	48
SP-Ⅲ	400	125	13	76.4	60
SP-Ⅳ	400	170	15.5	96.9	76.1
SP-ⅤA	500	200	19.5	133.8	105

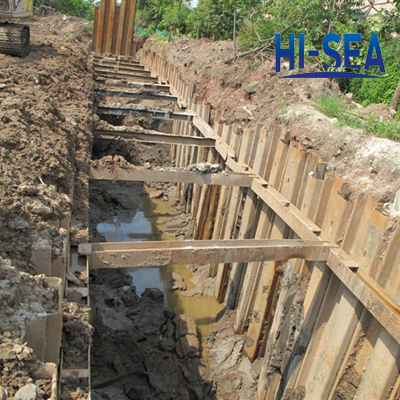

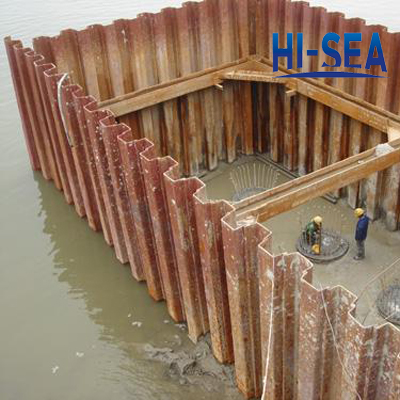

Application of larssen steel sheet pile
