Well-in Type Azimuth Thruster

Well-in Type Azimuth Thruster

The azimuth thruster mounted in the well. The stem length varies with the requirement of the application. The top mounting plate of the well should, if at all possible, be above the waterline so that the rudder propeller can be installed and removed when the ship is floating. Well installation varies with the distance between the rudder propeller and the diesel engine. When the engine room is very small, the rudder propeller can be near to the diesel engine and suitable for application in long range transmission between diesel engine and rudder propeller. The well installation is especially for tugs, ferries, well station, floating dock and survey ships.


1. Drive power: 20kw - 4500kw

2. Propeller diameter: 500mm - 4200mm

3. Certificates: ABS, BV, CCS, DNV, NK, KR, GL, RINA, etc.

4. Application: tugs, ferries, barges, survey ships, etc.

5. OEM service available

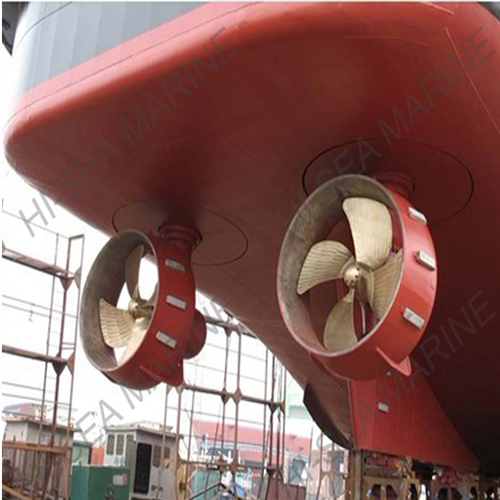

Product picture:

Well-in Type Azimuth Thruster

Well Type Azimuth Thruster
