Hydraulic Azimuth Thruster

Hydraulic Azimuth Thruster

Hydraulic azimuth thrusters use hydraulic source as driving power, and directly drive the propellers by hydraulic motor. They have the advantages of compact structure, easy-installation, simple maintenance, lower use cost, short production period, etc. The power range of this hydraulic azimuth thruster is from 60HP to 500HP. They can be used for yachts, open body mud ships, easy type engineering ships and others.

Specification:

Model	Power Rating (HP)	Dia of propeller (mm)	Thrust (t)
HSHP50	0-50	620	0-0.7
HSHP100	50-100	830	1-1.4
HSHP200	100-200	950	1.5-3.2
HSHP300	200-300	1000	3.4-4.4
HSHP400	300-400	1180	4.7-6.2
HSHP500	400-500	1300	6.5-7.7

Product image:

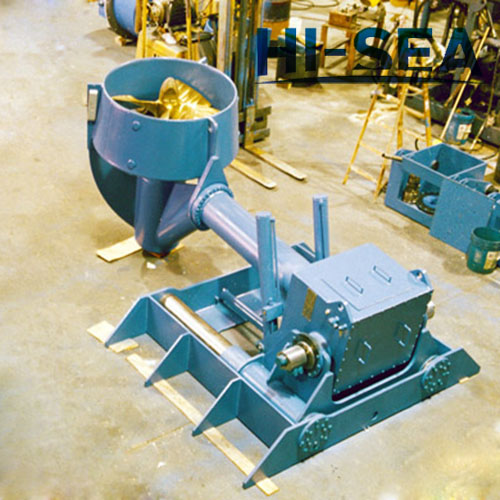

Hydraulic Azimuth Thruster

Hydraulic Azimuth Thruster
