Vacuum Breather Valve

[Search Related Products]

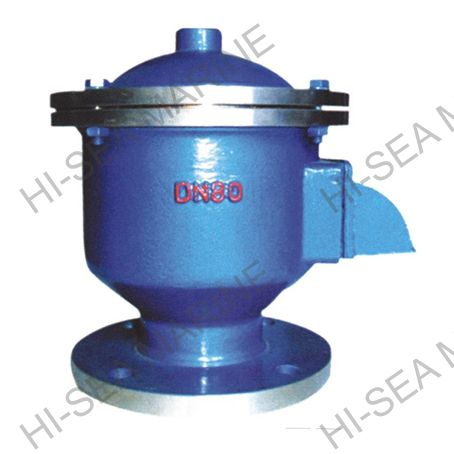

Vacuum Breather Valve

Vacuum Breather Valve:

1.Manufacture standard:GB5906-86.

2.End type:Flange/Thread.

3.End standard:HG,GB,SH,HGJ,JB,ANSI,JIS.

4.PN:0.6¡«2.5Mpa.

5.Material of construction:

NO

1

2

3

4

5

Component

Body

Guide

Rod

Positive valve

plate

Vaccum valve

plate

Gasket

Seal

Material

AL

CS

304

316

316L

AL

304

316

316L

CS

304

316

316L

PTFE

Graphite

Metal

PTFE

6.Dimension table:

DN

L/mm

H/mm

25

160

165

40

190

190

50

220

220

80

270

260

100

310

280

150

380

330

200

450

380

250

520

420

7.Drawing of Vaccum Breather Valve:

Vacuum Breather Valve
Vacuum Breather Valve

OrderConstruction£º

Please give clear indication of Dimension operating pressure and material.

Please give clear indication of flange, material and operating pressure if you need other standard.
