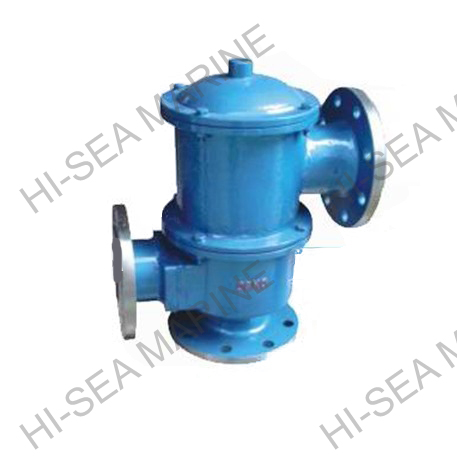

Double Nozzles Breather Valve [Search Related Products]
Materials of construction£º
|
NO |
1 |
2 |
3 |
4 |
5 |
6 |
| Component | Body | Stem Guide | Pressure Disk | Pressure Seat | Gasket | Fire Arresting |
|
Material |
Steel
Aluminums Casting |
304
316 316L PTFE |
304
316 316L PTFE |
304
316 316L PTFE |
304
316 316L PTFE |
304
316 316L PTFE |
Standard Connection£ºHG¡¢GB¡¢ANSI¡¢JIS¡¢DIN¡¢ect.
Operating Pressure£º-295pa-+98000pa £¨-30mmH2O¡ª¡ª+10000mmH2O£©

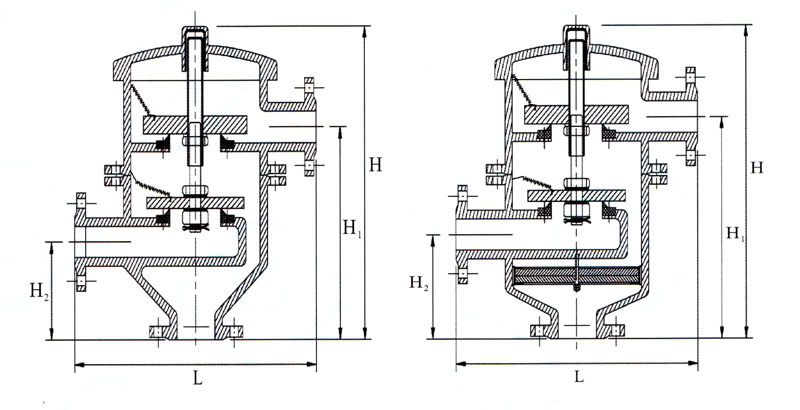

Dimension table£º
|
DN |
25 |
32 |
40 |
50 |
80 |
100 |
150 |
200 |
250 |
300 |
|
L |
280 |
300 |
320 |
320 |
450 |
450 |
620 |
750 |
850 |
1100 |
|
H |
300 |
320 |
350 |
350 |
500 |
500 |
600 |
700 |
820 |
900 |
