All weather Breather valve

All weather Breather valve:

1.Manufacturing standard:GB5908-86.

2.End type:Flange/Thread.

3.End standard:HG,GB,SH,HGJ,JB,ANSI,JIS.

4.Operating pressure:

  • Positive pressure:36mmH2O¡«1000mmH2O;
  • Vaccum pressure:-25mmH2O¡«-65mmH2O.

5.Pressure group:A,B,C,D.

6.Main material for construction:

No.

1

2

3

4

5

6

Component

Body

Positive valve plate

Vaccum valve plate

Bolt/Nut

Guide rod

Gasket seal

Material

AL¡¢CS

304

316¡¢316L

CS

304

316¡¢316L/F4


PTFE

F4

CS

304

316¡¢316L


AL

304

316¡¢316L


Graphite

Metal

PTFE

7.Dimension table:

DN/mm

L/mm

H/mm

50

320

295

80

380

325

100

420

355

150

520

425

200

600

495

250

680

575

300

750

625

350

850

675

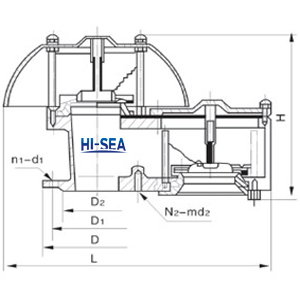

8.Drawing of All weather Breather valve:

All weather Breather valve

OrderConstruction£º

Please give clear indication of Dimension operating pressure and material.

Please give clear indication of flange, material and operating pressure if you need other standard.
