Universal Roller Fairlead

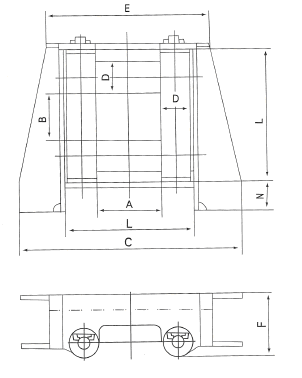

| Type | Rope dia(mm) | Dimensions(mm) | Mass(kg) | |||||||
| A | B | C | D | E | F | K | L | |||
| FA4-12 | 12 | 180 | 100 | 650 | 80 | 446 | 170 | 80 | 356 | 76 |
| FA4-16 | 16 | 230 | 130 | 800 | 100 | 546 | 210 | 100 | 446 | 130 |
| FA4-20 | 20 | 250 | 130 | 900 | 120 | 626 | 250 | 120 | 506 | 220 |
| FA4-24 | 24 | 280 | 160 | 1000 | 140 | 716 | 288 | 120 | 576 | 330 |
| FA4-32 | 32 | 300 | 160 | 1200 | 180 | 836 | 366 | 140 | 676 | 580 |
| FA4-40 | 40 | 320 | 180 | 1360 | 245 | 1030 | 500 | 150 | 830 | 1100 |
| FA4-48 | 48 | 400 | 250 | 1700 | 300 | 1236 | 608 | 200 | 1016 | 2210 |
