Swivel Head Anchor Fairlead

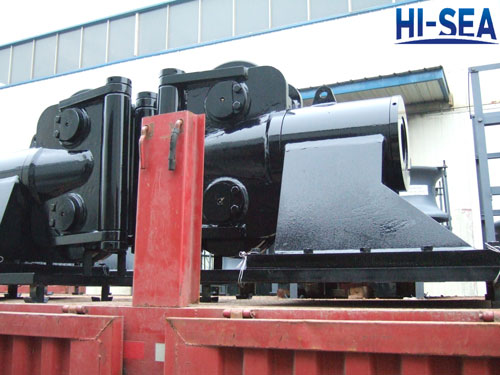

Swivel Head Anchor Fairlead

Swivel fairlead, installed on the deck of ships, is one kind of fairlead device which is used for ship mooring. In the central body of the fairlead there is opening for mooring ropes or anchor chains. At the beginning and end of the fairlead,there are same size front panel and back panel. The shape of opening is approximately elliptical. The surface of opening is smooth to avoid the abrasion of mooring ropes or anchor chains. In order to increase the stiffness and strength, fairlead set respectively horizontal, vertical, diagonal ribs. With the compact structure and reasonal opening, swivel fairlead is applicable to not only ordinary ship towing or mooring, but also to ships sailing in the canal waterway. We provide multiple types swivel fairleads: 360°„ swivel anchor fairlead, vertical lead sheaves, horizontal lead sheave and so on. If you're interested in our swivel fairleads, please feel free to contact us.


Model Type: Swivel Head Anchor Fairlead

Max. Rope Diameter: 20mm~76mm

Sheave: Single or Double Sheave

Breaking Strength:32~200MT

Rotation Angle: Sheave90°„warp, Swivel Head°ņ90°„

Material: Cast Steel


Optional Function:

1. Multiple Sheaves

2. With Monitoring System

3. Bolts or Welding Base

4. Synthetic Rope Sheave with Specicial High Performance

5. Produce According to Customer°Įs Drawing
