Type SR Spek Anchor

Type SR Spek Anchor

Type SR Spek anchor is one type of stockless anchors. Spek anchor is modified from the Hall anchor, whose core of anchor head is located in the center of the pin center line to the bottom. The structure of Spek anchor is characterized that there is anchor crown plate and reinforcing ribs at the anchor crown. Therefore, the anchor claw is easily to turn to the ground and has better stability. Moreover, when collecting the anchor, its flukes keep naturally upward and overturn immediately when touching the hull plate to avoid damaging the shell plating.

Product Detail

1. Type: SR Spek Anchor

2. Material: casting steel

3. Nominal Weight: 210kg to 20000kg

4. Application: marine ships

5. Certificate: CCS,ABS,LR,GL,DNV,NK,BV,KR,RINA,RS etc.

Spek Anchor Type

1. CB/T711-1995 Spek Anchor

2. Type M Spek Anchor

3. Type SR Spek Anchor

Note: our company is a professional marine anchor supplier. We can supply all variety of anchors to meet your different needs. Our anchors are approved by classification societies and get the certificates. If you’re interested in our products, please feel free to contact us. We’re sincere to cooperate with you.

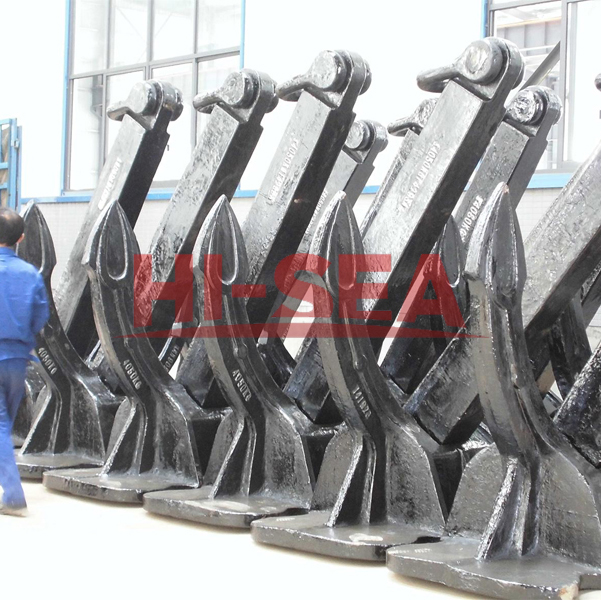

Type SR Spek Anchor

Type SR Spek Anchor Drawing

Specification

Nominal Weight(kg)	Size(mm)
Nominal Weight(kg)	A	B	B1	G
210	810	500	340	690
240	810	500	340	690
300	980	550	390	760
360	970	600	412	828
420	970	600	412	828
450	970	600	412	828
480	970	650	442	900
570	1050	650	442	900
610	1050	700	472	962
660	1134	700	472	962
750	1134	750	508	1032
780	1215	750	519	1032
900	1215	800	547	1100
980	1296	800	547	1100
1020	1296	850	573	1170
1040	1377	900	591	1240
1100	1458	900	620	1240
1200	1458	950	640	1300
1300	1539	950	640	1300
1400	1539	950	671	1300
1500	1539	950	671	1300
1650	1620	1000	669	1378
1800	1700	1050	704	1454
1920	1700	1050	717	1454
2100	1700	1050	136	1454
2190	1700	1050	736	1454
2280	1782	1100	764	1584
2460	1863	1150	794	1484
2640	1863	1150	804	1584
2850	1944	1200	812	1650
3300	1944	1200	834	1650
3540	1944	1200	834	1650
3780	2187	1350	880	1850
4050	2187	1350	914	1850
4320	2268	1400	917	1926
4590	2268	1400	931	1926
4890	2268	1400	954	1926
5250	2349	1450	964	2000
5610	2349	1450	981	2000
5800	2430	1500	1006	2060
6000	2430	1500	1006	2060
6450	2430	1500	1023	2060
6900	2510	1550	1034	2138
7350	2510	1550	1062	2138
7800	2510	1550	1091	2138
8000	2510	1550	1091	2138
8300	2754	1700	1125	2332
8700	2754	1700	1166	2332
9300	2754	1700	1188	2332
9900	2754	1700	1188	2332
10500	2867	1770	1197	2440
11100	2867	1770	1212	2440
11700	2867	1770	1237	2440
12300	3094	1910	1260	2632
12900	3094	1910	1260	2632
13500	3094	1910	1316	2632
14700	3321	2050	1369	2824
16900	3434	2120	1415	2922
18800	3548	2190	1461	3018
20000	3548	2190	1493	3018
