High Holding Power Marine Anchor

High Holding Power Marine Anchor

We have been a marine anchor producer and supploer since 1996, including stockless bower anchor, stock anchor, offshore anchors etc.. Our anchors have been approved by ABS, LR, BV, NK, DNV, GL, NK, KR, IRS, CCS Ceritificate. Good quality, Punctual shipment and Good service will make your business go smooth, we would be your reliable partner in China.


The open construction of this anchor offers for a smooth and excellent penetration in a variety of soils. The anchor offers excellent efficiency (weight/holding power) and easy dismantling for transport purposes. This anchor will hold true in the toughest conditions and will not rotate once it is set, which results in no decrease of holding capacity.
High holding power anchor is one type of offshore anchor, a smooth and excellent penetration in different seabeds.


300KGS-25000KGS High Holding Power Marine Anchor

1.Material: Steel Plate

2.Weight: 300KGS-25000KGS

3.Certificate: ABS, LR, BV, NK, DNV, RINA, RS, IRS,CCS.

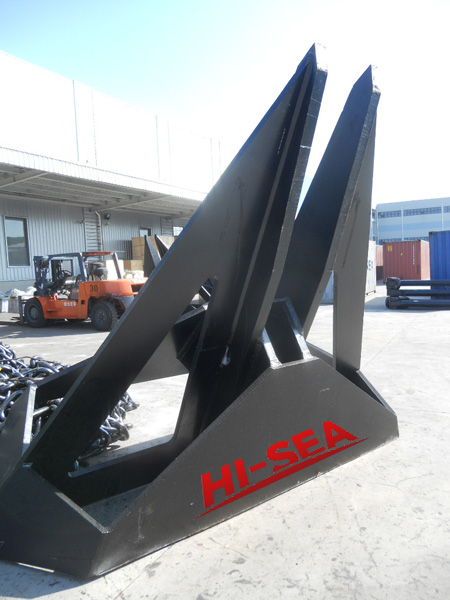

High Holding Power Marine Anchor

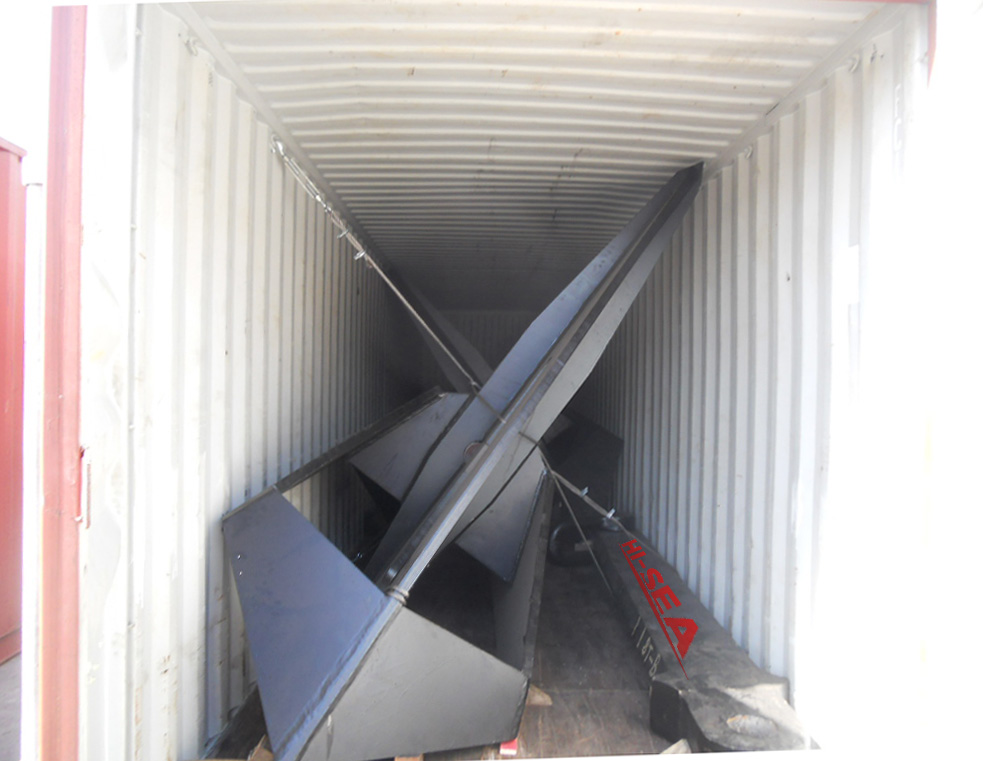

High Holding Power Marine Anchor Load and Transport


High Holding Power Marine Anchor

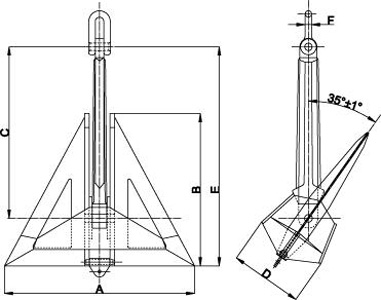

High Holding Power Marine Anchor Process Drawing

Specifications:

Nominal Weight (kg)

Dimensions (mm)

A

B

C

D

E

F

300

1,200

960

1,080

457

1,380

ŽÁ45

500

1,500

1,200

1,350

571

1,725

ŽÁ50

1,000

1,875

1,500

1,686

714

2,155

ŽÁ62

1,080

1,915

1,530

1,686

722

2,200

ŽÁ62

2,000

2,363

1,890

2,124

900

2,715

ŽÁ74

3,000

2,700

2,160

2,430

1,028

3,105

ŽÁ90

4,000

2,975

2,380

2,676

1,133

3,420

ŽÁ100

5,000

3,250

2,600

2,922

1,238

3,735

ŽÁ110

7,000

3,575

2,860

3,216

1,360

4,110

ŽÁ117

9,000

3,950

3,160

3,555

1,504

4,543

ŽÁ135

10,000

4,100

3,280

3,690

1,561

4,715

ŽÁ140

12,000

4,490

3,575

4,030

1,695

5,320

ŽÁ145

13,500

4,670

3,720

4,195

1,765

5,535

ŽÁ150

15,000

4,845

3,875

4,355

1,830

5,735

ŽÁ150

18,000

5,140

4,080

4,610

1,940

6,080

ŽÁ160

20,000

5,330

4,260

4,790

2,010

6,310

ŽÁ170

22,500

5,490

4,360

4,905

2,060

6,470

ŽÁ180

25,000

5,740

4,590

5,106

2,165

6,795

ŽÁ180

27,500

5,980

4,785

5,385

2,245

7,095

ŽÁ180

How to Order?

1. Weight

2. Quantity

3. Society Classficiation Certificate
