TW Type Bower Anchor

TW Type Bower Anchor

We have been a marine anchor manufacturer and supplier since 1996, including stockless anchor, stock anchor, High Holding Power Anchor and offshore anchor. ABS, LR, BV, LR, DNV, GL, KR, IRS, CCS Certificate is avialable for our products. With the advantage of rich source, good quality and service, we could be your reliable partner in China.

Product Details:

1. Material: ZG200-400C.

2. Weight: 20KGS-30000KGS.

3. Certificate: ABS, LR, GL, BV, NK, DNV, IRS, CCS.

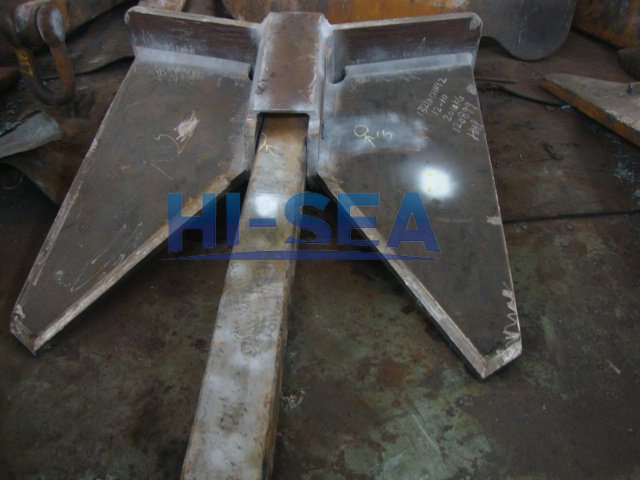

TW Type Bower Anchor

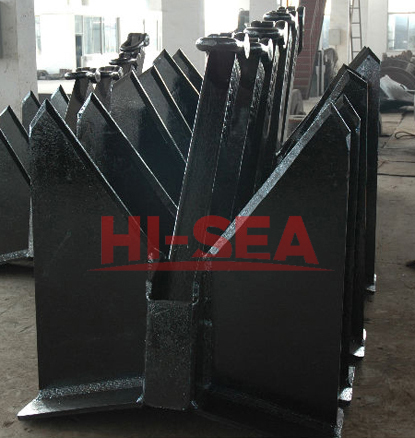

TW Type Bower Anchor Warehouse

TW Type Bower Anchor

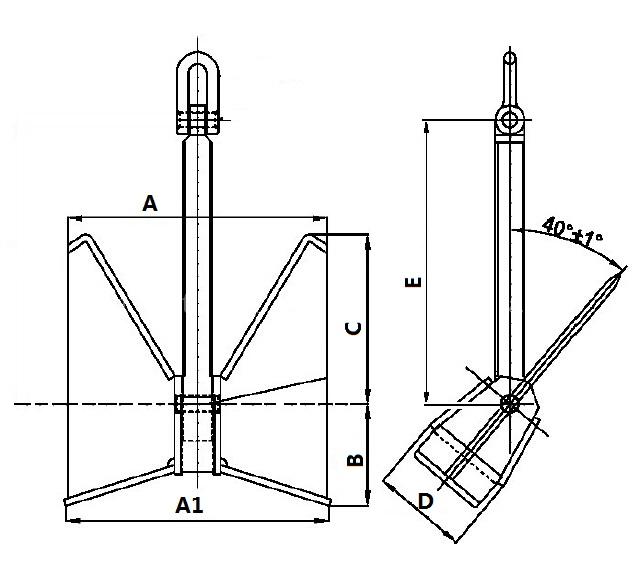

TW Type Bower Anchor Process Drawing

TW Type Bower Anchor Specifications:

Nominal Weight(kg)

Size(mm)

A

B

C

D

E

F

20

369

374

144

240

136

402

32

435

437

168

280

158

469

40

469

476

183

305

172

510

60

536

544

210

349

197

585

75

578

587

225

376

212

630

80

600

610

225

400

222

685

90

615

624

240

400

226

670

105

648

658

252

422

240

710

125

686

697

267

447

254

750

135

705

716

274

459

261

773

145

720

730

280

470

266

788

160

746

758

290

486

276

818

180

776

787

301

505

287

850

225

836

848

325

544

309

915

270

888

902

342

573

326

965

300

920

933

357

598

340

1008

360

978

993

380

637

362

1072

400

996

1010

386

648

374

1090

450

1038

1053

403

675

390

1137

495

1086

1103

422

707

402

1190

565

1136

1153

425

740

420

1245

585

1160

1180

450

755

428

1270

675

1205

1224

468

785

446

1322

765

1257

1276

488

818

465

1378

855

1286

1306

500

841

482

1411

1000

1360

1380

528

885

530

1480

1080

1400

1420

542

915

520

1530

1130

1410

1430

547

917

521

1544

1195

1458

1479

566

949

540

1597

1305

1486

1509

579

973

556

1634

1440

1535

1560

596

1001

578

1683

1575

1584

1608

615

1032

596

1735

1710

1628

1651

632

1060

612

1782

1845

1670

1695

648

1087

628

1828

1980

1704

1731

667

1119

638

1880

2140

1754

1768

676

1135

655

1908

2295

1795

1822

697

1169

675

1966

2475

1841

1868

715

1199

692

2016

2665

1886

1912

732

1228

708

2064

2750

1907

1930

738

1238

715

2082

2835

1926

1955

748

1255

725

2110

3000

1972

2002

765

1285

742

2160

3240

2014

2044

782

1311

757

2205

3445

2056

2087

798

1340

774

2258

3690

2100

2130

815

1367

790

2298

Look forwards to receiving your enquiry!

TW Type Bower Anchor

TW Type Bower Anchor

Marine Anchor

TW Type Bower Anchor

Contact with us now

Nominal Weight(kg)	Size(mm)
Nominal Weight(kg)	A	B	C	D	E	F
20	369	374	144	240	136	402
32	435	437	168	280	158	469
40	469	476	183	305	172	510
60	536	544	210	349	197	585
75	578	587	225	376	212	630
80	600	610	225	400	222	685
90	615	624	240	400	226	670
105	648	658	252	422	240	710
125	686	697	267	447	254	750
135	705	716	274	459	261	773
145	720	730	280	470	266	788
160	746	758	290	486	276	818
180	776	787	301	505	287	850
225	836	848	325	544	309	915
270	888	902	342	573	326	965
300	920	933	357	598	340	1008
360	978	993	380	637	362	1072
400	996	1010	386	648	374	1090
450	1038	1053	403	675	390	1137
495	1086	1103	422	707	402	1190
565	1136	1153	425	740	420	1245
585	1160	1180	450	755	428	1270
675	1205	1224	468	785	446	1322
765	1257	1276	488	818	465	1378
855	1286	1306	500	841	482	1411
1000	1360	1380	528	885	530	1480
1080	1400	1420	542	915	520	1530
1130	1410	1430	547	917	521	1544
1195	1458	1479	566	949	540	1597
1305	1486	1509	579	973	556	1634
1440	1535	1560	596	1001	578	1683
1575	1584	1608	615	1032	596	1735
1710	1628	1651	632	1060	612	1782
1845	1670	1695	648	1087	628	1828
1980	1704	1731	667	1119	638	1880
2140	1754	1768	676	1135	655	1908
2295	1795	1822	697	1169	675	1966
2475	1841	1868	715	1199	692	2016
2665	1886	1912	732	1228	708	2064
2750	1907	1930	738	1238	715	2082
2835	1926	1955	748	1255	725	2110
3000	1972	2002	765	1285	742	2160
3240	2014	2044	782	1311	757	2205
3445	2056	2087	798	1340	774	2258
3690	2100	2130	815	1367	790	2298
