15000kgs to 46000kgs JIS Stockless Anchor

JIS STOCKLESS ANCHOR

Japan stockless anchor is a normal type of stockless anchor. Normal Japan stockless anchor has a small ball on fluke.

Product Detail

Material: ZG200-400C

Weight: 15000kgs to 46000kgs

Certificate: ABS,LR, BV, DNV, NK, IRS, CCS

Package: Nude packing

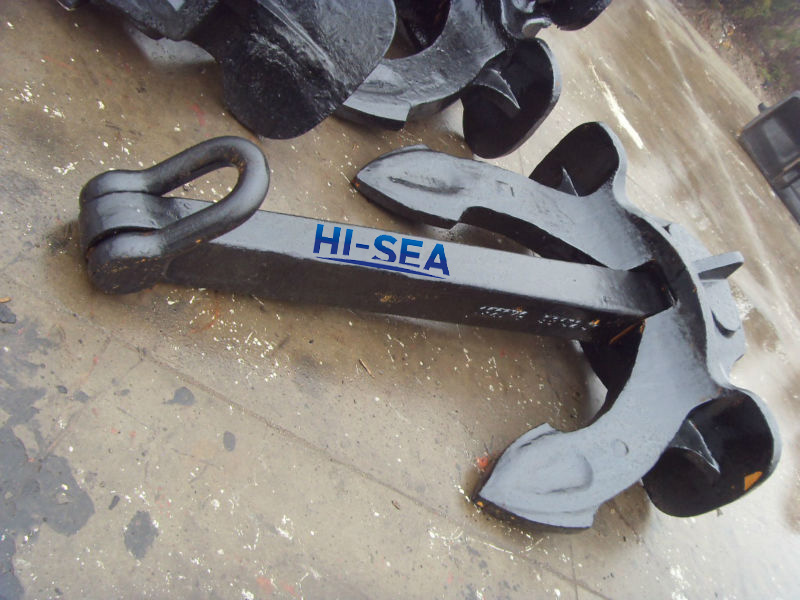

15000kgs to 46000kgs JIS Stockless Anchor

JIS Stockless Anchor

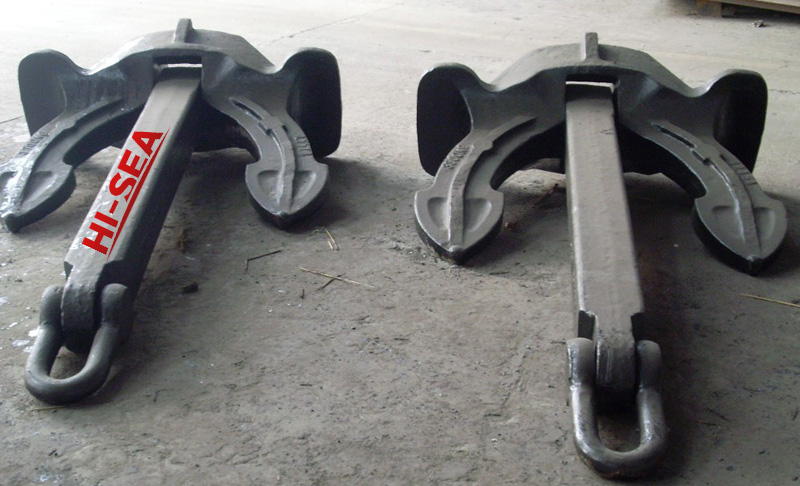

15000kgs to 46000kgs JIS Stockless Anchor

JIS Stockless Anchor

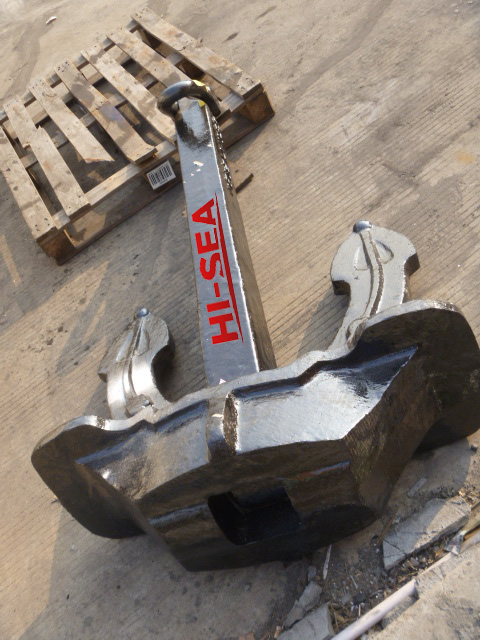

15000kgs to 46000kgs JIS Stockless Anchor

JIS Stockless Anchor

15000kgs to 46000kgs JIS Stockless Anchor

JIS Stockless Anchor

15000kgs to 46000kgs JIS Stockless Anchor

JIS Stockless Anchor Process Drawing


JIS Stockless Anchor Techinical Specification

Nominal Weight
(KG)

Size(mm)

L

L1

L2

H

H1

H2

180

650

459

910

111

480

280

240

720

510

1010

122

530

310

300

770

540

1080

131

570

331

360

820

580

1150

139

610

353

420

860

610

1200

146

640

370

480

900

640

1260

153

670

387

570

950

670

1330

162

700

408

660

1000

710

1440

170

740

430

780

1060

750

180

180

780

456

900

1110

780

1550

189

820

477

1020

1160

820

1620

197

860

500

1140

1200

850

1680

204

890

520

1290

1250

880

1750

212

920

540

1440

1300

920

1820

221

960

560

1590

1340

950

1880

228

990

580

Note: the above specification chart is only one part. For more information, please feel free to contact us. We'll give you a quick reply.
