Standard JIS 1169 Eye Nut

Standard JIS 1169 Eye Nut:

We has produced standard JIS 1169 eye nuts for many years and we also co-operate with other factories, so all of our products have high cost performance. In addition, our professional sales team will offer you the best service. Please feel free to contact with us.

Details:

1. Model: Standard JIS 1169 Eye Nut
2. Material: Carbon Steel, stainless steel, alloy steel
3. Usage: Wire rope fittings, marine hardware fittings
4. Surface Treatment: Galvanized,hot dipped galvanized
5. Size: as customers' requirement
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements

Specification:

Size

A

B

C

D

H

L

E

WLL

mm

mm

mm

mm

mm

mm

mm

mm

ton

M6

23

14

4.5

6

20

11

6

0.05

M8

32.6

15

6.3

12

27.3

12

8

0.08

M10

41

20

8

16

33.5

15

10

0.15

M12

50

24

10

18

42

19

12

0.22

M14

56

26.5

11.5

21.5

46.5

21

14

0.3

M16

60

29

12.5

23.5

49

23

16

0.45

M18

67

31

14.5

25

53.5

25

18

0.5

M20

72

33

16

26

58

28

20

0.63

M22

81

35

18

28

65.5

33

22

0.8

M24

90

38

20

31

73

38

24

0.95

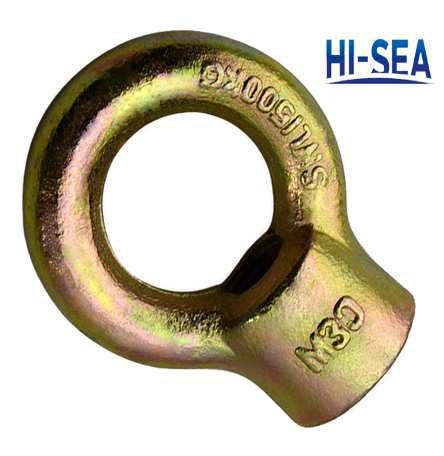

Photo:

Standard JIS 1169 Eye Nut

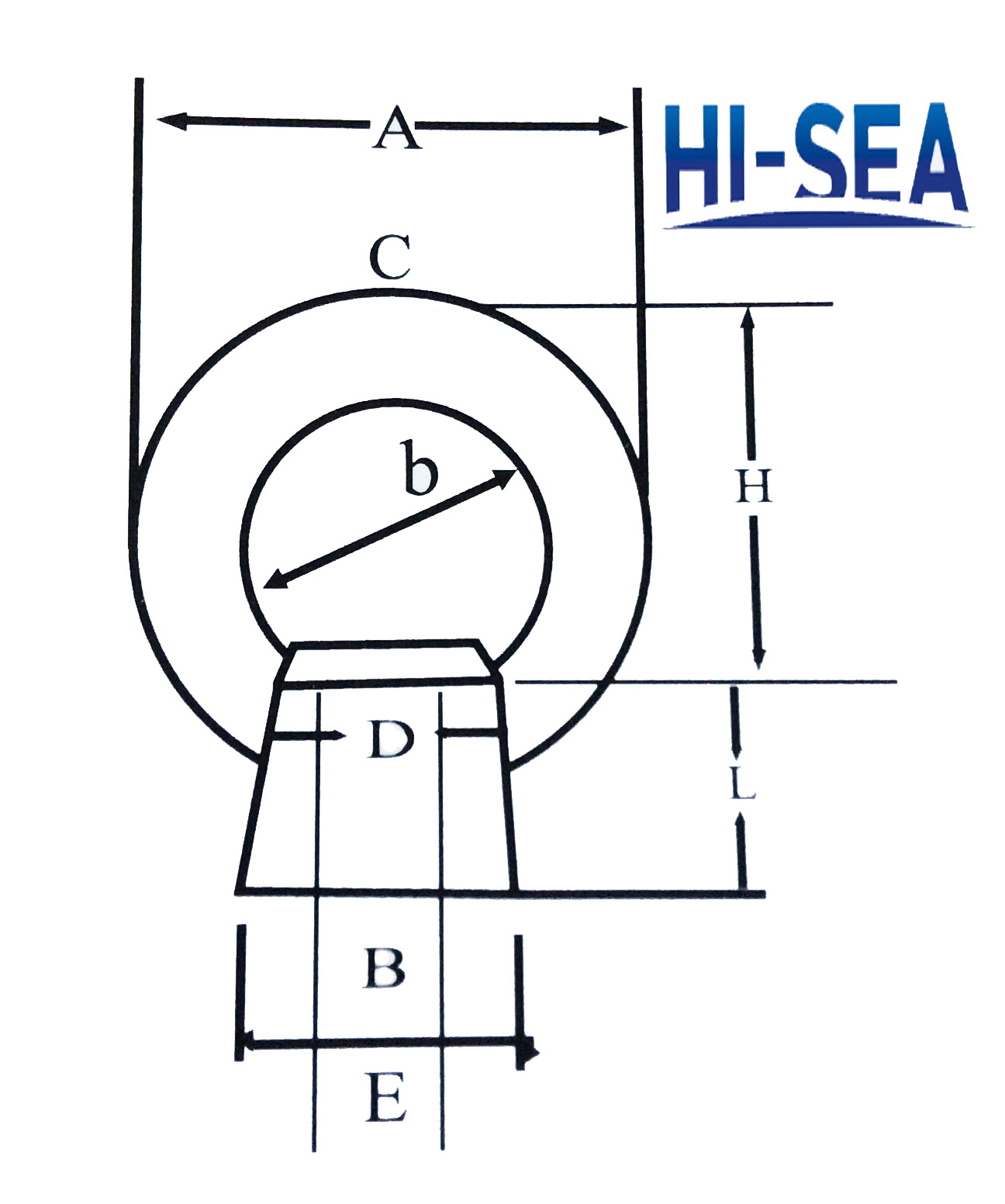

Structure:

Eye Bolt and Eye Nut

Standard JIS 1169 Eye Nut

Contact with us now

Size	A	B	C	D	H	L	E	WLL
mm	mm	mm	mm	mm	mm	mm	mm	ton
M6	23	14	4.5	6	20	11	6	0.05
M8	32.6	15	6.3	12	27.3	12	8	0.08
M10	41	20	8	16	33.5	15	10	0.15
M12	50	24	10	18	42	19	12	0.22
M14	56	26.5	11.5	21.5	46.5	21	14	0.3
M16	60	29	12.5	23.5	49	23	16	0.45
M18	67	31	14.5	25	53.5	25	18	0.5
M20	72	33	16	26	58	28	20	0.63
M22	81	35	18	28	65.5	33	22	0.8
M24	90	38	20	31	73	38	24	0.95

Eye Bolt and Eye Nut

Standard JIS 1169 Eye Nut
