BS4278-3 Dynamo Eyebolt

BS4278-3 Dynamo Eyebolts:

BS4278-3 dynamo eyebolts are essential for rigging systems. Our company has produced this model for many years. Variou sizes are available and the price is very competitive. Welcome to get in touch with us.

Details:

1. Model: BS4278-3 Dynamo Eyebolts
2. Material: Gray iron, ductile iron, steel
3. Usage: Wire rope fittings, marine hardware fittings
4. Surface Treatment: Galvanized,hot dipped galvanized, zinc plated
5. Size: Various sizes are available
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements

Specification:

Size	Weight	WLL
mm	kg/pc	ton
Metric coarse thread
8	0.33	0.1
10	0.35	0.15
12	0.36	0.2
14	0.37	0.3
16	0.38	0.4
18	0.39	0.7
20	0.4	1
22	0.65	1.3
24	0.65	1.6
30	1.31	2.5
36	2.69	4
42	5.31	4.5
45	5.35	5
48	5.5	6.3

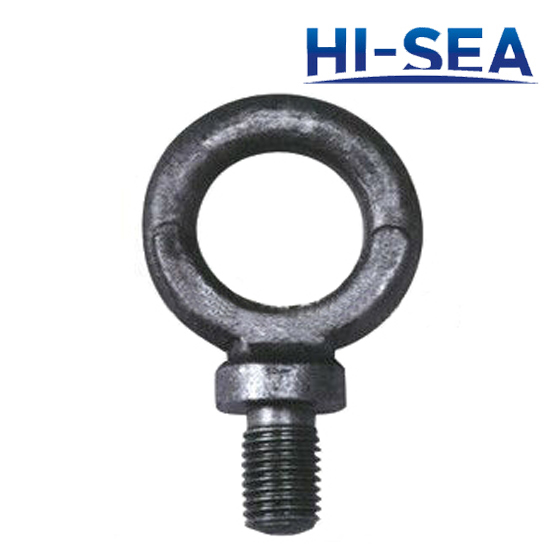

Photo:

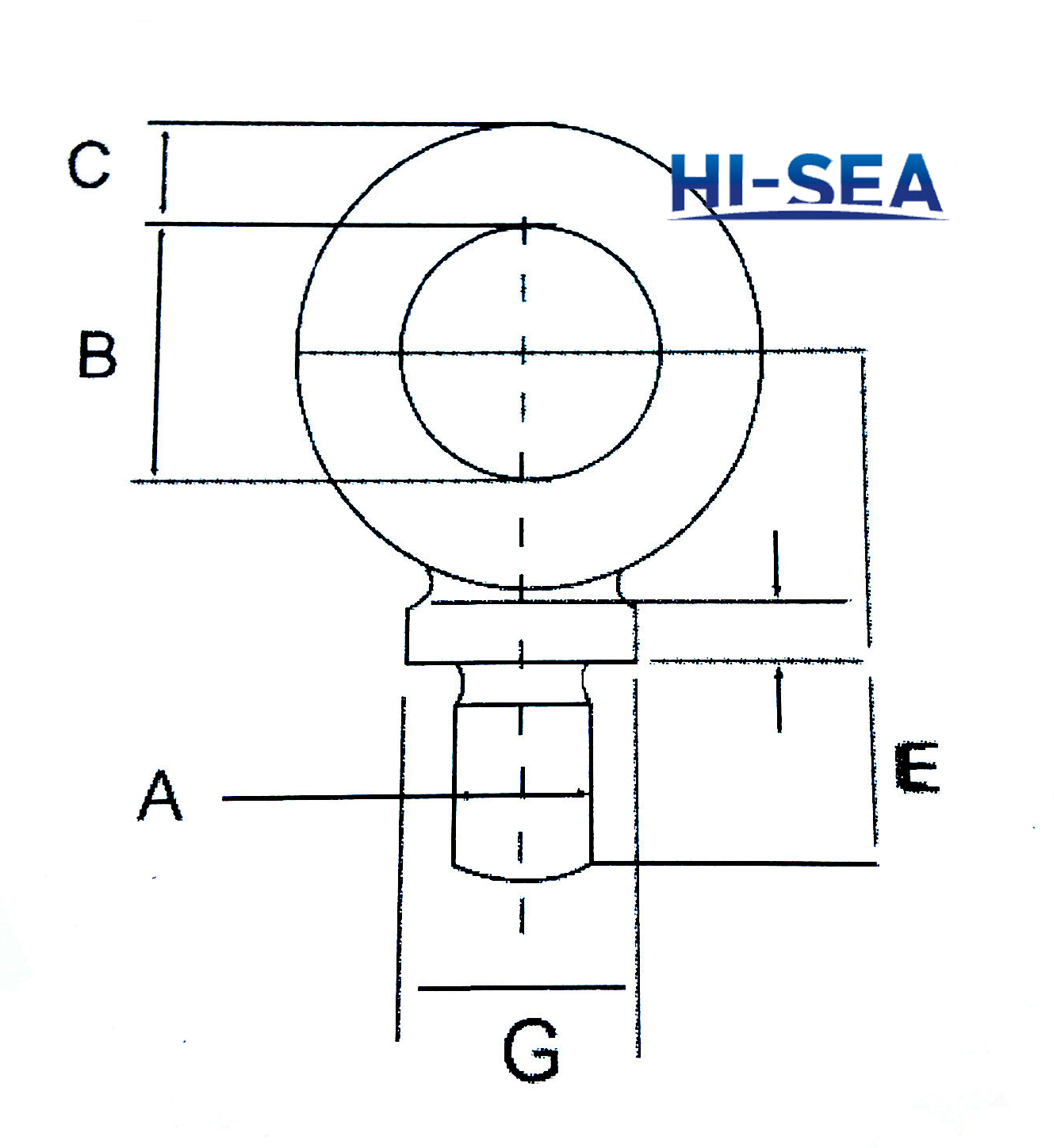

Structure:
