DIN 582 Eye Nut

DIN 582 Eye Nut:

DIN 582 eye nuts are important for marine hardware. Our company has produced this model for several years. All of them have required relative society certifications. What's more, our professional sales team will provide you with the best service. Please feel free to contact with us.

Details:

1. Model: DIN 582 Eye Nut
2. Material: Carbon Steel, stainless steel, alloy steel
3. Usage: Wire rope fittings, marine hardware fittings
4. Surface Treatment: Galvanized,hot dipped galvanized
5. Size: From M6 to M100
6. Packing: Gunny bag or carton and pallet / by customer requirments
7. Our advantages: quality assurance, experienced staff, professional service, competitive price, etc.
8. Certifications: ISO9001, CE, SGS,etc.
9. Notes: Special specifications and marks can be made according to customers requirements
Specification:

Size

WLL

Dimensions(mm)

Weight

d

tons

d2

d3

d4

e

h

k

kgs/100pcs

M6

0.08

20

36

20

8.5

31

8

4.9

M8

0.14

20

36

20

8.5

36

8

5

M10

0.23

25

45

25

10

45

10

9

M12

0.34

30

54

30

11

53

12

16

M14

0.49

35

63

35

13

62

14

24

M16

0.7

35

63

35

13

62

14

24

M18

0.95

40

72

40

16

71

16

36

M20

1.2

40

72

40

16

71

16

36

M22

1.5

45

81

45

18

80.5

18

58

M24

1.8

50

90

50

20

90

20

72

M27

2.5

50

90

50

20

90

20

70

M30

3.6

65

108

60

25

109

24

132

M33

4.3

65

108

60

25

109

24

130

M36

5.1

75

126

70

30

128

28

208

M39

6.1

75

126

70

30

147

28

202

M42

7

85

144

80

35

147

32

311

M45

8

85

144

80

35

168

32

304

M48

8.6

100

166

90

40

168

38

502

M52

9.9

100

166

90

40

187

38

495

M56

11.5

110

184

100

45

187

42

669

M64

16

120

206

110

50

208

48

930

M72

21

150

260

140

60

260

60

1875

M80

28

170

296

160

70

298

68

2730

M88

38

190

330

180

75

330

75

3640

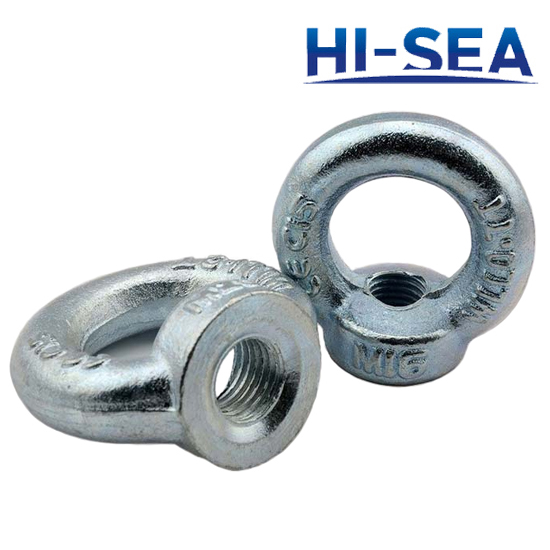

Photo:

DIN 582 Eye Nut

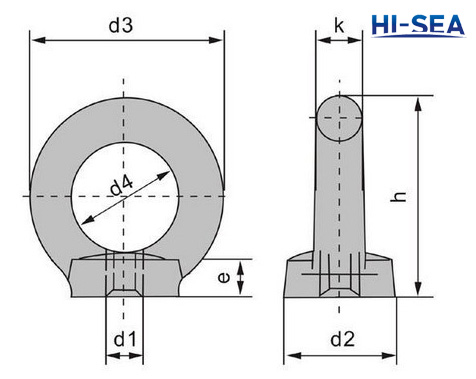

Structure:

DIN 582 Eye Nut

Eye Bolt and Eye Nut

DIN 582 Eye Nut

Contact with us now

Size	WLL	Dimensions(mm)						Weight
d	tons	d2	d3	d4	e	h	k	kgs/100pcs
M6	0.08	20	36	20	8.5	31	8	4.9
M8	0.14	20	36	20	8.5	36	8	5
M10	0.23	25	45	25	10	45	10	9
M12	0.34	30	54	30	11	53	12	16
M14	0.49	35	63	35	13	62	14	24
M16	0.7	35	63	35	13	62	14	24
M18	0.95	40	72	40	16	71	16	36
M20	1.2	40	72	40	16	71	16	36
M22	1.5	45	81	45	18	80.5	18	58
M24	1.8	50	90	50	20	90	20	72
M27	2.5	50	90	50	20	90	20	70
M30	3.6	65	108	60	25	109	24	132
M33	4.3	65	108	60	25	109	24	130
M36	5.1	75	126	70	30	128	28	208
M39	6.1	75	126	70	30	147	28	202
M42	7	85	144	80	35	147	32	311
M45	8	85	144	80	35	168	32	304
M48	8.6	100	166	90	40	168	38	502
M52	9.9	100	166	90	40	187	38	495
M56	11.5	110	184	100	45	187	42	669
M64	16	120	206	110	50	208	48	930
M72	21	150	260	140	60	260	60	1875
M80	28	170	296	160	70	298	68	2730
M88	38	190	330	180	75	330	75	3640

Eye Bolt and Eye Nut

DIN 582 Eye Nut
