Single-deck Steel Port Light

Single-deck Steel Port Light:

Single-deck steel Port Light is a kind of port light which produced by steel and made in to single-deck,which has the feature of corrosion-resisting and shock resistance.Applied to the ships with the length above 12m.Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.And is in agreement with standard GB/T3028-1995.Approved by CCS and ZY of China Fishery Inspection.

Products characteristic:

1.It's convenient to install and replace the bulb,and there are automatic aleak holes in the bottom.

2.The shell adopts good quality metal material steel,the surface is painted the special mold-power,has the feature of corrosion-resisting and shock resistance.

3.The lampshade adopts polycarbonate,it has the feature of ultraviolet radiation resistance and does not discolor etc.

Specification:

Type	Bulb	Level arc	Visibility	Color	Protection class	Lamp holder	Weight
CXH2-1D	24V 60W 110V 65W 220V 65W	112.5°	3n.m	Red	IP55	B22d	4.9kg
CXH2-2C	24V 30W	112.5°	2n.m	Red	IP55	B15d	1.8kg

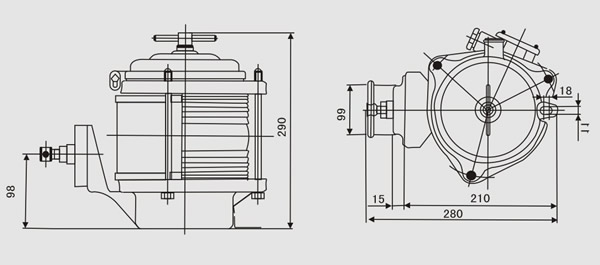

CXH2-1D Drawing

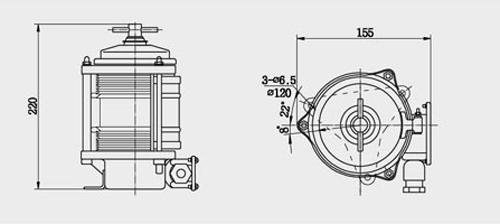

CXH2-2C Drawing
