Double-deck All-round Light

Double-deck All-round Light:

Double-deck All-round Light is a kind of all-round light,which has the features that corrosion resistance and shock resistance,and some of them has automatic aleak holes in the bottom,convenient to install and replace the bulb.Applied to different types of ships,conform to THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.And is in agreement with standard GB/T3028-1995.Approved by CCS and ZY of China Fishery Inspection.

Specification:

Type	Bulb	Level arc	Visibility	Color	Protection class	Lamp holder	Weight
CXH6-10B	24V 60W 110V 60W 220V 65W	360°	3n.m	Transparent Red Green	IP55	B22d	9.0kg
CXH6-10B₁	24V 60W 60cd 110V 60W 60cd 220V 65W 60cd	360°	3n.m		IP56	P28S	4.0kg
CXH6-20C₁	24V 30W	360°	2n.m		IP55	B15d	3.0kg
CXH6-101P	24V 60W 60cd 110V 60W 60cd 220V 65W 60cd	360°	3n.m		IP56	P28S	4.0kg
CXH6-101PL	220V 2*30W	360°	3n.m		IP56	E27	4.0kg

Double-deck All-round Light

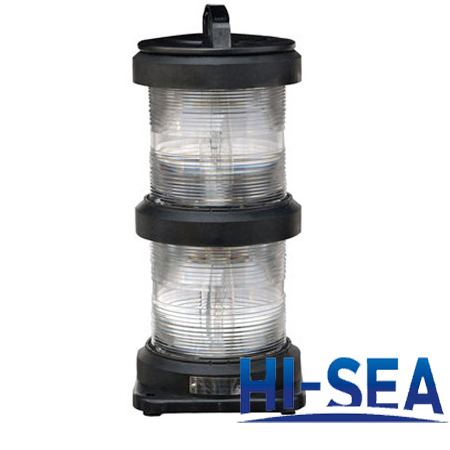

CXH6-101P

CXH6-20C₁
