Anchor Light

Anchor Light:

Applied to the ships as for navigation lamp signal or use for anchor and take the ground as lamp signal.Its behavior is in agreement with THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.Conform to the standard GB/T3028-1995.The product approved by CCS.

Products characteristic:

1.The shell is made of good quality steel, lampshade adopts good quality glass.

2.The shell structure has fine seal performance, and it is convenient to install and remove.

Specification:

Type

Lamp holder

Bulb

Level arc

Visibility

Color

Protection class

Material

Weight

CXH8-1

E27

220V/40W

110V/40W

360

3n.m

Transparent

IP55

Steel

1.7kg

CXH8-2

B15d

24V/15W

24V/30W

360

2n.m

Aluminum

0.75kg

Anchor Light

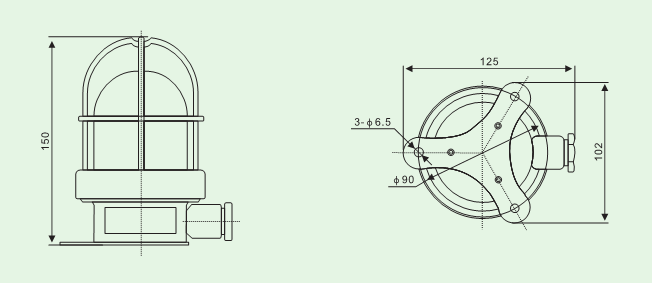

CXH8-1 Drawing

Anchor Light

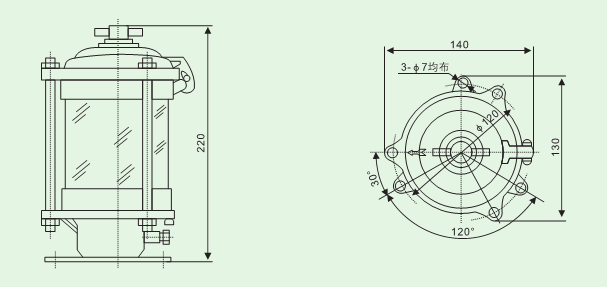

CXH8-2 Drawing
