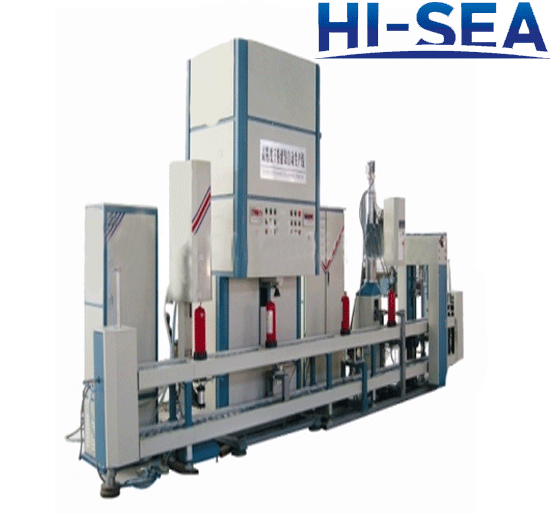

Powder Fire Extinguisher filling Product Line

Powder Fire Extinguisher Production Line

Powder fire extinguisher production line is a new product design and manufactured recent years. This production line equipped with relevant high accuracy sensors, under the control of the programmable logic controller, to conduct testing and monitoring for various parameters such as speed, location, weight and sealing performance etc..All working position transfers and actions adopt air pressure transmission and control so that it is automation equipment that has integrated optical, mechanic,electric and power components into a whole. This product is mainly composed of below units; supporting roller conveyer, original agent source device , rough filling and fine filling system, vibration filling valve, cylinder valve turning tightly, pressurizing work position, leakage inspection, label sticking or silk tape printing etc, each of which can work as an alone unit, also can be organically combined to generate an automatic production. With manpower saving and high output, each production line needs only 2 or 3 men to operate assembling work.

Main Technical Parameters

Production Capacity: 220 cylinder/hour

Conveying linear Speed: 6m/min

Filling Speed:30kg/min

Powder Filling Accuracy:≤0.7%

Air Driving Pressure:0.4-0.8 Mpa

Voltage: AC 380V /AC 220V 50Hz

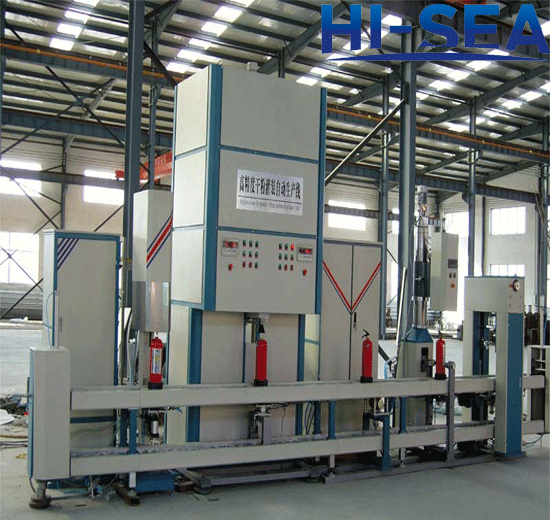

Powder Fire Extinguisher Filling Product Line
