Permanent Magnetic Lifter for Steel Plate

[Search Related Products]

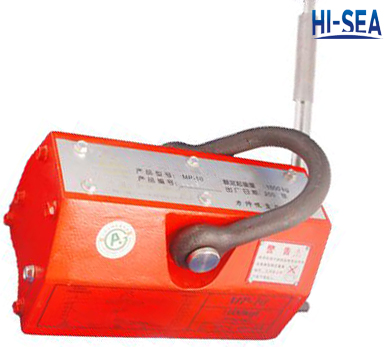

Permanent Magnetic Lifter for Steel Plate

Permanent Magnetic Lifter for Steel Plate

Permanent magnetic lifter for steel plate uses permanent magnetic material. And because the magnetic force will not failure, so the lifting force it can provide greatly strengthened. Its rated lifting force fully strengthened nearly 3.5 times, so the safety coefficient is more reliable in the process of practical application. Through the V groove design, it can make the hoisting scope become more extensive, which greatly enhanced the value of its application.

Product Details:

1. Item: Permanent magnetic lifter for steel plate

2. Type: Permanent

3. Power source: Magnet

4. Capacity: 100kg-5000kg

5. Braking load is 4 times of working load limited

6. Usage: Lifting

7. Special specifications and marks can be made according to customers requirement

Safety Notice:

1. Pay attention to the balance. Magnetic lifter should be placed above the center of gravity of objects

2. when land the magnetic lifter, pease pay attention to the surrounding situation to prevent hurt people.

3 .Carefully check each part, the damaged parts should be replaced timely .

4. In the process of lifting, not allowed to oprate in the head of equipment or personnel.

Specification:

Capacity(kg)

B.L(kg)

Weight(kg)

L(mm)

B(mm)

H(mm)

R(mm)

100

300

3

90

63.5

68

145

400

1200

10

160

95

80

210

600

1800

20

220

115

125

230

1000

3000

37

260

145

150

280

1500

3750

48

310

145

150

280

2000

5000

68

340

160

165

410

3000

7500

87

420

185

185

510

4000

10500

116

480

200

200

510

5000

15000

198

580

300

300

650

Permanent Magnetic Lifter for Steel Plate

Sketch of the permanent magnetic lifter for steel plate

Permanent Magnetic Lifter for Steel Plate

Permanent Magnetic Lifter for Steel Plate
