Electric Magnetic Lifter for Steel Plate

Electric Magnetic Lifter for Steel Plate

Electric magnetic lifter for steel plate are used for lifting single thin steel plate. No electriccity is consumed during the working period, it is only required when cycling from magnetized to demagnetize. And electricity shutdown will not affect the operaion of the magnetic system or the magnetic latching of the work load.

Product Details:

1. Item: Electric magnetic lifter for steel plate

2. Type: Electric permanent

3. Power source: Magnet

4. Capacity: 100kg-2000kg

5. Braking load is 4 times of working load limited

6. Usage: Lifting

7. Special specifications and marks can be made according to customers requirement

Safety Notice:

1. Pay attention to the balance. Magnetic lifter should be placed above the center of gravity of objects

2. When lifting, the working current should achieve the rated value to start lifting.

3. when land the magnetic lifter, pease pay attention to the surrounding situation to prevent hurt people.

4 .Carefully check each part, the damaged parts should be replaced timely .

5. In the process of lifting, not allowed to oprate in the head of equipment or personnel.

Specification:

Rated capacity(kg)	Weight(kg)	A(mm)	B(mm)	D(mm)	H(mm)	M(mm)	n(mm)
100	15	350	106	45	49	6	3
200	22	350	162	45	49	6	3
300	30	500	162	45	49	6	3
500	40	500	218	60	49	10	3
600	50	650	218	60	49	10	3
800	60	500	330	80	49	12	4
1000	75	650	302	90	49	12	4
1500	105	950	302	100	49	16	4
2000	145	950	386	100	49	16	4

Electric Magnetic Lifter for Steel Plate

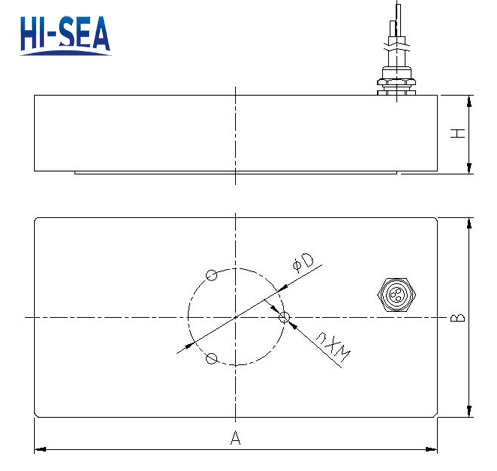

Sketch of the electric magnetic lifter for steel plate
