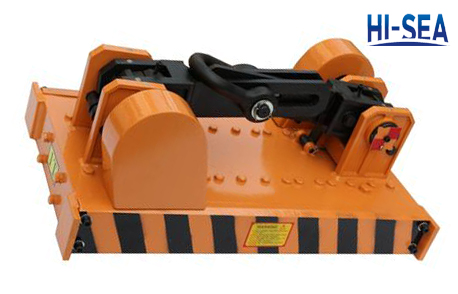

Automatic Permanent Magnetic Lifter

Automatic Permanent Magnetic Lifter

Automatic permanent magnetic lifter use high performance magnetic material, whose force will not fail. So, the lifting force it can provide greatly strengthened. It can be widelyused in shipbuilding, engineering machinery and mold manufacturing industry for lifting large steel paltes.

Product Details:

1. Item: Automatic permanent magnetic lifter

2. Type: Permanent

3. Power source: Magnetic force

4. Capacity:500kg-5000kg

5. Braking load is 4 times of working load limited

6. Usage: Lifting

7. Special specifications and marks can be made according to customers requirement

Safety Notice:

1. Pay attention to the balance. Magnetic lifter should be placed above the center of gravity of objects

3. When land the magnetic lifter, pease pay attention to the surrounding situation to prevent hurt people.

4. Carefully check each part, the damaged parts should be replaced timely .

5. In the process of lifting, not allowed to oprate in the head of equipment or personnel.

Specification:

Capacity(kg)	Weight(kg)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	G(mm)
500	135	510	180	582	352	26	46	92
1000	195	510	210	582	390	26	50	92
1500	240	665	210	735	390	26	50	92
2000	255	680	320	750	500	26	50	112
3000	430	770	360	850	500	30	56	125
5000	610	920	420	1000	580	34	80	141

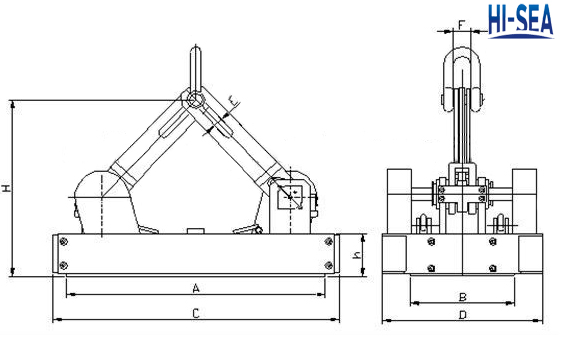

Sketch of the automatic permanent magnetic lifter
