Fireproof Endless Type Round Sling

Fireproof Endless Type Round Sling:

Fireproof endless type round sling is produced by high-strength, heat resistant aramid fiber. This kind of sling is characterized by light, soft, flame-retardant, heat resistant, excellent abrasion resistance, high strength and low elongation, high safety coefficient, long life, non-conductive, non-electric shock danger, having a good chemical corrosion resistance and so on. In addition, it can be applied to flame, sparks, high-temperature environment and the temperature range is from -40℃ to 180℃. What's more, its diameter is just half of the ordinary lifting sling. Welcome to get in touch with us.

Details:

1. Model: Fireproof Endless Type Round Sling
2. Material: Polyester
3. Usage: Lifting
4. Colors: Various color
5. Length: To be customized
6. Packing: Packaged with bags, standard export carton or by customer requirments
7. Our advantages: quality assurance, experienced staffs, professional service, competitive price, etc.
8. Certifications: CE, ABS, CCS, ISO, NK, TUV,etc.
9. Notes: Special specification and marks can be made according to customers requirements
Specification:

Working load limited

Approx thickness

Approx width

L

Weight(6:1)

Minimum length

Maximum length

kg

mm

mm

m

m

kg/m

1000

4

30

1.50

To be customized

0.28

2000

5

40

1.50

0.42

3000

6

50

1.50

0.50

4000

7

60

1.50

0.56

5000

8

70

1.50

0.60

6000

9

75

2.00

0.70

8000

11

80

2.00

0.80

10000

13

90

2.00

1.50

12000

14

100

3.00

2.24

15000

16

110

3.00

2.66

20000

18

125

3.00

3.64

Fireproof Endless Type Round Sling

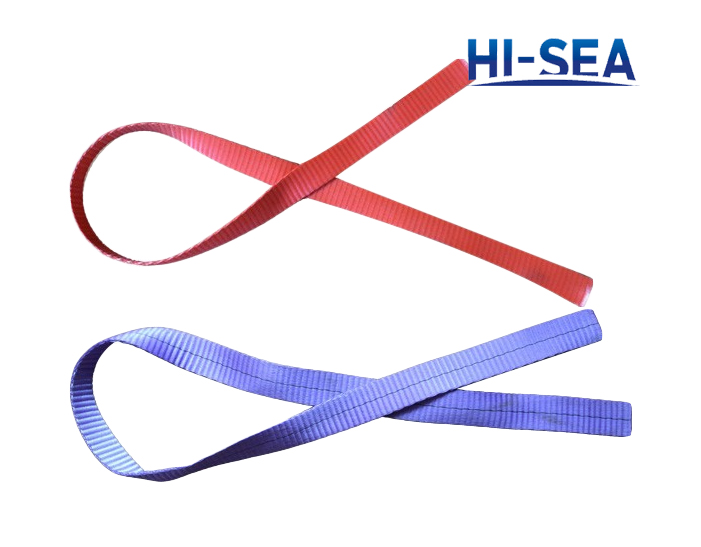

Fireproof Round Sling

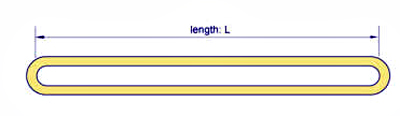

Structure:

Fireproof Endless Type Round Sling

Lifting Sling

Fireproof Endless Type Round Sling

Contact with us now

Working load limited	Approx thickness	Approx width	L		Weight(6:1)
Working load limited	Approx thickness	Approx width	Minimum length	Maximum length	Weight(6:1)
kg	mm	mm	m	m	kg/m
1000	4	30	1.50	To be customized	0.28
2000	5	40	1.50		0.42
3000	6	50	1.50		0.50
4000	7	60	1.50		0.56
5000	8	70	1.50		0.60
6000	9	75	2.00		0.70
8000	11	80	2.00		0.80
10000	13	90	2.00		1.50
12000	14	100	3.00		2.24
15000	16	110	3.00		2.66
20000	18	125	3.00		3.64

Lifting Sling

Fireproof Endless Type Round Sling
