Common Round Sling

Common Round Sling:

Common round sling is soft in texture and with multiple suspension points and is entanglement. Round sling is composed of step-less encircled tows in parallel arrangement and wear-resistant casting. When local damage to load bearing core of round sling as a result of serious overload arising from malfunction or long-time use occurs, its casing will break first for warming to prevent accident from occurring. Breakdown of casing is deemed as the basis for abandonment, which visualizes security inspection for the sling.

Details:

1. Model: Common Round Sling
2. Material: Polyester
3. Usage: Lifting
4. Colors: Orange, purple, green, yellow, grey, red, brown, blue, etc.
5. Length: To be customized
6. Packing: Packaged with bags, standard export carton or by customer requirments
7. Our advantages: quality assurance, experienced staffs, professional service, competitive price, etc.
8. Certifications: CE, ABS, CCS, ISO, NK, TUV,etc.
9. Notes: Special specification and marks can be made according to customers requirements

Specification:

Color	Working load limit	Approximate thickness	Approximate width	Min length	Max length
	kg	mm	mm	m	m
Orange	500	4	50	0.5	To be customized
Purple	1000	6	50	0.5
Green	2000	8	60	0.5
Yellow	3000	9	70	0.5
Grey	4000	11	70	0.5
Red	5000	13	85	0.5
Brown	6000	13	85	1
Blue	8000	13	120	1
Orange	10000	14	120	2
Orange	12000	15	130	2
Orange	15000	18	130	2
Orange	20000	20	140	2.5
Orange	25000	24	140	2.5
Orange	30000	32	145	2.5
Orange	40000	40	150	2.5
Orange	50000	45	175	2.5
Orange	60000	65	205	4
Orange	80000	70	250	4
Orange	100000	80	290	4
Orange	200000	120	465	5
Orange	300000	160	555	5
Orange	400000	200	700	5
Orange	500000	220	790	8
Orange	600000	240	875	8
Orange	700000	260	920	8
Orange	800000	280	985	8
Orange	900000	300	1050	9
Orange	1000000	320	1080	9

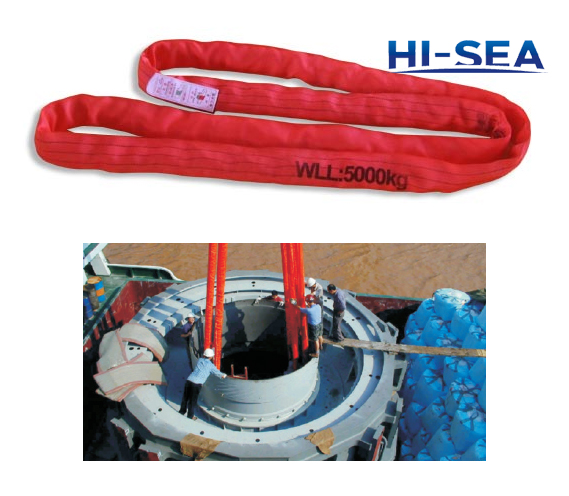

Red Round Sling

Common Round Sling

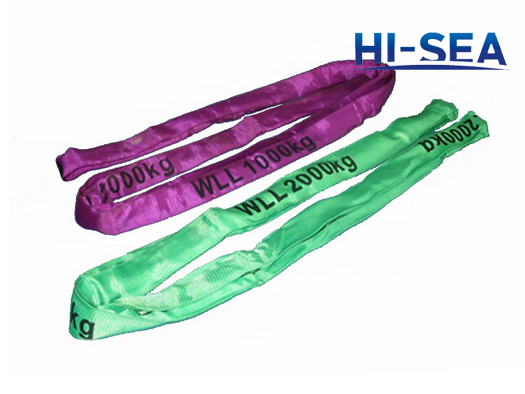

Green and Purple Round Sling

Common Round Sling

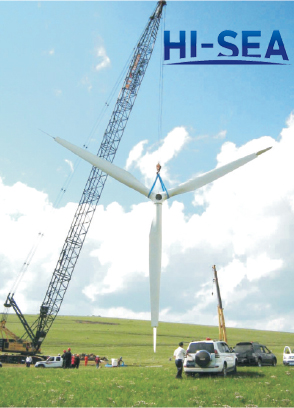

Blue Round Sling

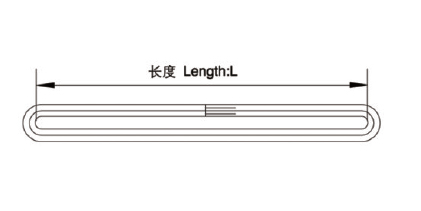

Structure:

Common Round Sling
