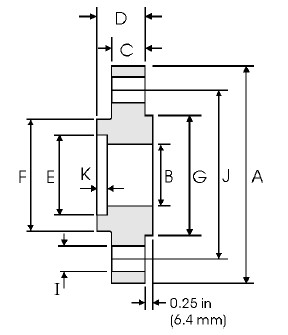

CS flange SW ASME B16.5 600LB:

[Search Related Products]



CS flange SW ASME B16.5 600LB:CS flange SW ASME B16.5 600LB:

CS flange SW ASME B16.5 600LB:

Type: socket weld

Carbon steel : A105, A36, Rst37.2, St37.2, C22.8, SA350 LF2/LF1, Q235, Q345, SS400,ASTM A105,20#, A234, 16Mn¡¢ASTM A350 LF1,LF2 CL1/CL2,LF3 CL1/CL2¡¢ASTM A694 F42,F46,F48,F50,F52,F56,F60,F65,F70

Application: petroleum, chemical, food industry, marine, etc.

Pressure grade: 150LB, 300LB,400LB, 600LB, 900LB, 1500LB, 2500LB

DN: 2'-24'

Besides, can supply other flanges below:

Flanges types:


Slip on flanges, welding neck flanges, long welding neck flanges, blind flanges, plate flanges, socket welding flanges, threaded flanges, lap joint flanges, orifice flanges, loose plate flanges.


Material:

Carbon steel : A105, A36, Rst37.2, St37.2, C22.8, SA350 LF2/LF1, Q235, Q345, SS400,ASTM A105,20#, A234, 16Mn¡¢ASTM A350 LF1,LF2 CL1/CL2,LF3 CL1/CL2¡¢ASTM A694 F42,F46,F48,F50,F52,F56,F60,F65,F70

Stainless steel: 304,304L,316,316L,F321,F347,F310£¬F44 F51,A276 S31803, A182, F43, A276 S32750,A705 631,632,A961, A484,

Alloy steel: ASTM A182 F1¡¢ F5a¡¢ F9¡¢ F11¡¢ F12¡¢ F22¡¢ F91¡¢A182F12¡¢A182F11¡¢16MnR¡¢Cr5Mo¡¢12Cr1MoV¡¢15CrMo¡¢12Cr2Mo1¡¢A335P22¡¢St45.8/¢ó¡¢35CrMoV¡¢ 45CrMo

Surface treatment:

Antirust oil, yellow, epoxy coating, nylon surface,hot galvanized,electrical galvanized

Making type:

Forged or casted

Standard:

ANSIB16.5/B16.47/B16.48/B16.36, ASME,MSS SP44, AWWA C207,DIN2527, DIN2566, DIN2573,DIN2576,DIN2641,DIN2642, DIN2655, DIN2656, DIN2627, DIN2628,DIN2629, DIN 2631, DIN2632,DIN2633,DIN2634,DIN2635,DIN2636, DIN2637, DIN2638, DIN2673 BS4504/10, JIS, EN 1092, NF, API590 FIG.8, GB, etc.

Pressure grade:

ASTM B16.5: 150LBS, 300LBS,400LBS, 600LBS, 900LBS, 1500LBS, 2500LBS

DIN: 6Bar, 10Bar, 16Bar, 25Bar, 40Bar

BS4504: PN2.5-PN40

BS10: Table D, E, F, H

JIS: 5K,10K, 16K, 20K, 30K
