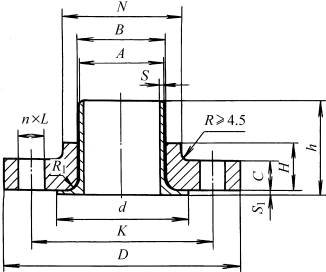

Carbon Steel Slip on Flanges

[Search Related Products]

Carbon Steel Slip on Flanges Carbon Steel Slip on Flanges



Flanges types:

Slip on flanges, welding neck flanges, long welding neck flanges, blind flanges, late flanges, socket welding flanges, threaded flanges, lap joint flanges, orifice flanges, loose plate flanges.

Material:

Carbon steel , Stainless steel, Alloy steel:

A105, A36, Rst37.2, St37.2, C22.8, SA350 LF2/LF1, Q235, Q345, SS400, SF45, S235GRJ2,

304,304L,316,316L

Surface treatment:

Antirust oil, yellow, epoxy coating, nylon surface,hot galvanized,electrical galvanized

Making type:

Forged or casted

Standard:

ANSIB16.5/B16.47/B16.48/B16.36, ASME,MSS SP44, AWWA C207,DIN2527, DIN2566, DIN2573,DIN2576,DIN2641,DIN2642, DIN2655, DIN2656, DIN2627, DIN2628,DIN2629, DIN 2631, DIN2632,DIN2633,DIN2634,DIN2635,DIN2636, DIN2637, DIN2638, DIN2673 BS4504/10, JIS, EN 1092, NF, API590 FIG.8, GB, etc.

Pressure grade:

ASTM B16.5: 150LBS, 300LBS,400LBS, 600LBS, 900LBS, 1500LBS, 2500LBS

DIN: 6Bar, 10Bar, 16Bar, 25Bar, 40Bar

BS4504: PN2.5-PN40

BS10: Table D, E, F, H

JIS: 5K,10K, 16K, 20K, 30K
