ABS Grade A Shipbuilding Steel Plate

[Search Related Products]

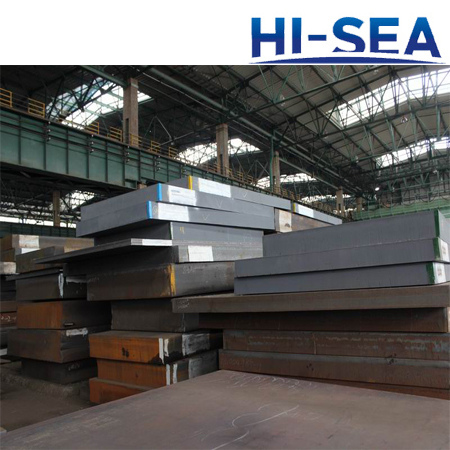

ABS Grade A Shipbuilding Steel Plate

ABS Grade A Shipbuilding Steel Plate

The steel grade of the ship building plate is ABS grade A. It is equivalent with BVA, CCSA, NV A, GL-A KRA, LRA, KA, RINA-A. It is noted that the grade of normalized plate is AB/AN, however, the grade of hot rolled steel and controlled rolled steel is AB/A. The ABS grade A shipbuilding steel plate is suitable for offshore platforms and hull fabrication. Its tensile strength is 235MPa. It belongs to normal strength shipbuilding steel plate. In addition to normal strength shipbuilding steel plate, we supply high strength shipbuilding steel plate and super high strength shipbuilding steel plate. We provide a large range of plate sizes for you. Of course, if you have any special requirement, we can customize products for you. All shipbuilding steel plates provided are certified by renowned classification societies. If you want to know more details, please contact us. We will reply you as soon as possible.

Our Advantages:

• High quality products, certified by authoritative classification societies

• A full selection of steel grades and steel sizes

• Rich experience in import and export trade

• Fast delivery, effective logistic distribution system

• Professional pre-sales and after-sales service

Specifications of ABS Grade A Shipbuilding Steel Plate

Project

Data

Steel Grade

AB/A, AB/AN

Chemical Composition

C %

¨Q0.21

Si %

¨Q0.50

Mn %

¨R0.50

P %

¨Q0.035

S %

¨Q0.035

Cu %

¨Q0.35

Cr %

¨Q0.30

Ni %

¨Q0.30

Mechanical Property

Upper Yield strength (ReH/MPa)

¨R235

Tensile Strength (Rm/MPa)

400~520

Elongation after Fracture

(A/%)

¨R22

Charpy V-Notch Impact Test

Thickness: ¨Q50mm

Longitudinal (KV2/J)

27

Transverse (KV2/J)

20

Thickness: >50~70

Longitudinal (KV2/J)

34

Transverse (KV2/J)

24

Thickness: >70~150

Longitudinal (KV2/J)

41

Transverse (KV2/J)

27

Test Temperature (¡æ)

20

Plate Size

Thickness (mm)

1.2~130

Width (mm)

900~4800

Length (mm)

980~25000

Note

We can customize plate sizes for you.
