ZYG-1.0 Hydrophore

[Search Related Products]

ZYG-1.0 Hydrophore

1. Technical Specification:

* Design pressure: 0.6MPa

* working pressure: 0.5MPa

* working medium:fresh water

* volume:1.0m³
* structural testing: 0.9MPa
* dense experiment: 0.75MPa (There is no leakage)
* Inside and outside superficial stain removal, The internal surface coates non-toxic white drinking water tank primer and finish 2 degree; Outside surface paint Fuxin primer 2 degrees, coating blue enamel paint 2 degrees.

* The standard of the flange:ANSI B 16.5,RF#150;
* SS304 piping&fitting;
* IP44 min

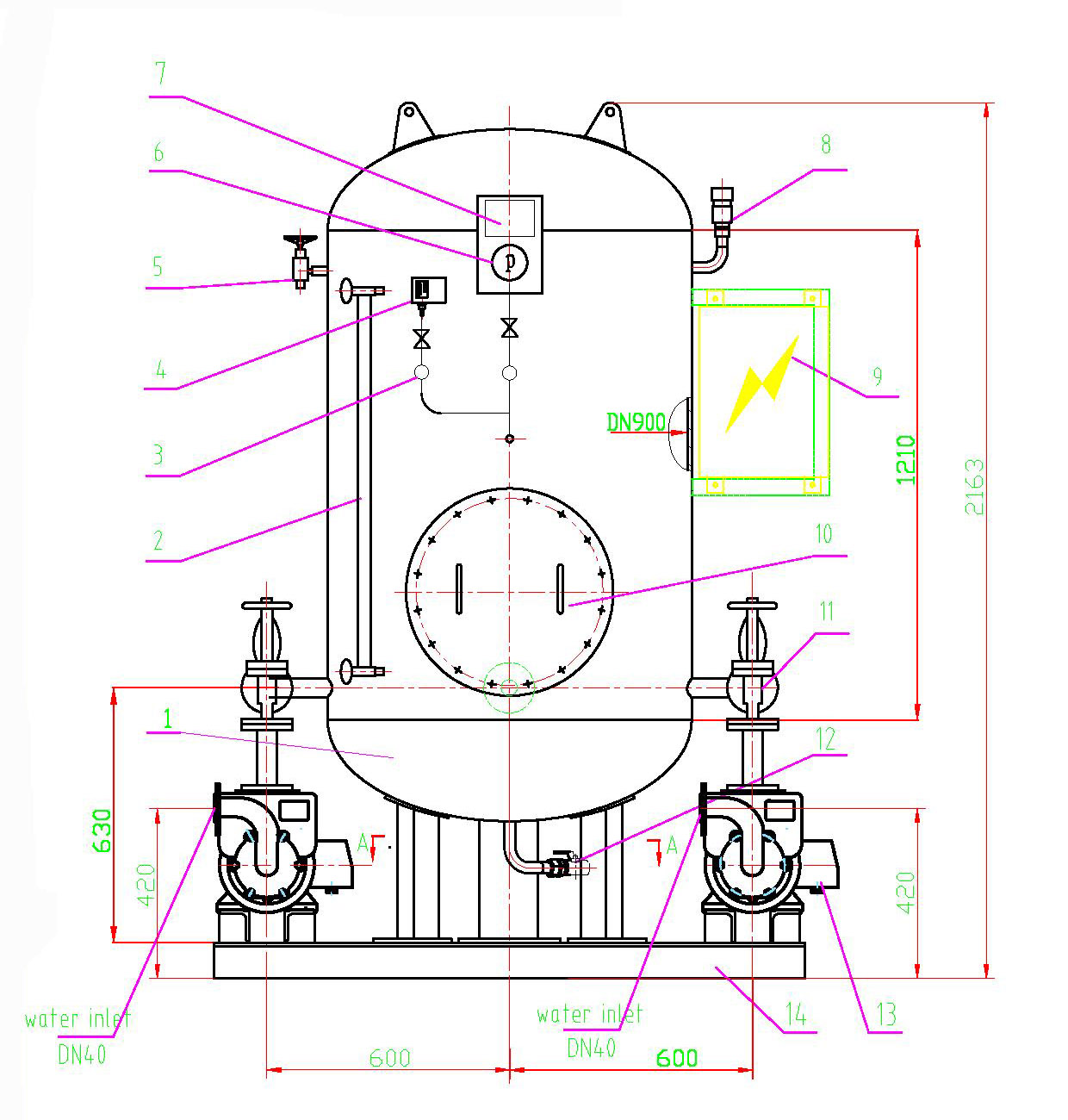

2. General Drawing:

ZYG-1.0 Hydrophore

No.

Model

Spares Description

Qty. (pc)

Remarks

1

Main body ¦Ä6

1

Q235B

2

ULG-940H/A

Liquidometer

1

Assembly

3

nstrument valve

2

Assembly

4

KP35

Pressure controller

1

Assembly

5

B40010 GB596

Stop-check valve

1

copper

6

YC-100T

Pressure gauge

1

Assembly

7

Nameplate

1

stainless steel

8

A21F-16P

Safety valve

1

Assembly

9

Electric control box

1

Assembly

10

DN400

Manhole cover

1

Assembly

11

B16040 GB591-93

Stop-check valve

2

Assembly

12

DN20

Ball valve

1

stainless steel

13

1.5CWX-3G

Water pump

2

cast iron

14

Base

1

Q235A

3. All the certificates we can supply:

ZYG-1.0 Hydrophore
